Mfr Part #:

M50-3001045

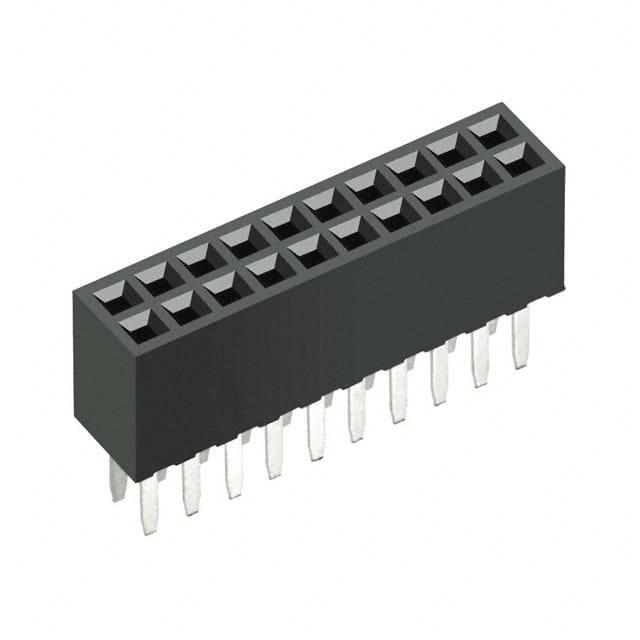

This is a 20-position (10+10) female receptacle connector from Harwin's Archer M50 series. It features a 1.27mm pitch, through-hole mounting, and gold flash contacts.

✓ Total Stock: 300 pcs

$ Price Range: $1.62 - $2.92

M50-3001045 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	240 pcs On Request	240 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	60 pcs On Request	60 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

M50-3001045 Description

Short technical summary and product information.

The M50-3001045 is a female receptacle connector part of the Archer M50 series from Harwin Inc. It is designed for board-to-board or cable applications with a 1.27mm pitch and double row configuration. The connector has 20 contacts arranged as 10+10, with a straight through-hole termination style. The connector body is made of high-temperature thermoplastic with UL94 V-0 flammability rating, and the contacts are copper alloy with gold flash finish. The insulation height is 4.4mm and the contact length is 2.4mm. Mated stacking heights range from 5.4mm to 6.08mm to 9.37mm. Operating temperature range is -40°C to 105°C, with a current rating of 1A. Initial contact resistance is 20mΩ maximum. The connector is packaged in tubes. This connector is suitable for various electronic applications requiring compact, high-density interconnections.

M50-3001045 Quick Information

Product Type: Receptacle Connector

Series: M50

Canonical Name: 20 Position Receptacle Connector, 1.27mm Pitch, Through Hole, Female Socket, Gold Contact Finish

Subcategory: Board-to-Board Receptacle

M50-3001045 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

M50-3001045 Estimated Pricing

Qty	Low	High
1+	$2.92	$2.92
10+	$2.77	$2.77
25+	$2.30	$2.30
88+	$2.12	$2.12
264+	$2.05	$2.05
528+	$1.92	$1.92
1,012+	$1.82	$1.82
2,508+	$1.77	$1.77
5,016+	$1.62	$1.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

M50-3001045 Features

20-position (10+10) double row receptacle.
1.27mm pitch for compact designs.
Through-hole mounting with solder termination.
Gold flash contact finish.
Operating temperature range -40°C to 105°C.

M50-3001045 Applications

Used in board-to-board stacking applications.
Suitable for cable-to-board connections.
Ideal for high-density interconnect systems.
Common in industrial and consumer electronics.

M50-3001045 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

20 positions, arranged as 10+10 in a double row configuration.

What is the pitch?

1.27mm (0.050").

What is the current rating?

1A per contact.

What is the mounting type?

Through hole (THT) with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Gold flash on contacts.

What are the mated stacking heights?

5.4mm, 6.08mm, and 9.37mm.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Harwin Inc.
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Length	2.40mm (0.094")
Contact Material	Copper Alloy
Contact Type	Female Socket
Current Rating (Amps)	1A
Fastening Type	Push-Pull
Housing Material	High Temperature Thermoplastic
Insulation Color	Black
Insulation Height	4.40mm (0.173")
Lead Spacing	1.27 mm
Lead Style	Straight
Mated Stacking Heights	5.4mm, 6.08mm, 9.37mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
SVHC Present	Not Present
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
