| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Type |

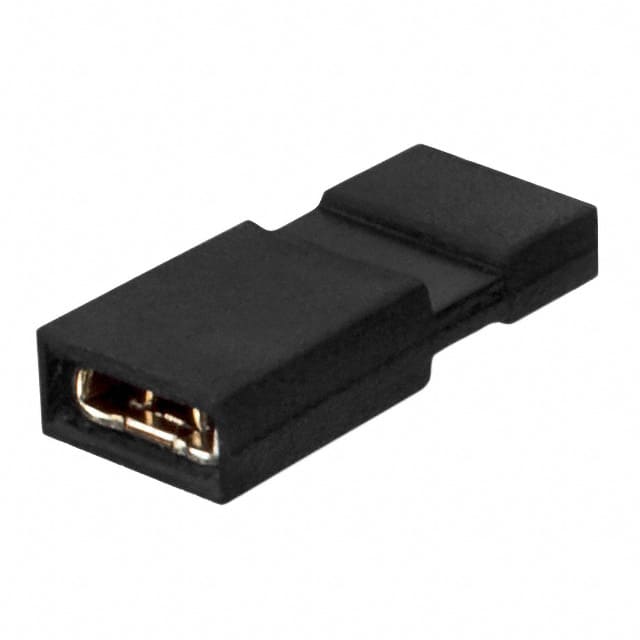

The Harwin M50-2000005 is a 2-position shunt (jumper socket) from the Archer M50 series, designed for 1.27mm (0.050") pitch applications. It features a closed top grip configuration with female socket contacts.
Electrical rating is 1A with an initial contact resistance of 20mΩ maximum per EIA-364-06C, rising to 30mΩ after conditioning. Contacts are gold-plated with a thickness of 1.00µin (0.025µm) over the mating area.
The housing is molded from black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The part is intended for through-hole mounting and is commonly used to configure logic or address lines on prototyping boards and production PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.31 | $0.31 |
| 25+ | $0.27 | $0.27 |
| 100+ | $0.26 | $0.26 |
| 250+ | $0.23 | $0.23 |
| 1,000+ | $0.22 | $0.22 |
| 3,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 2 positions arranged as 1 x 2.
The current rating is 1A.
The housing is polybutylene terephthalate (PBT) with a UL94 V-0 rating.
The contact finish is gold with a thickness of 1.00µin (0.025µm).
