| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
649 pcs
|
649 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
351 pcs
|
351 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conflict Minerals | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mating Cycles | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Termination Style | |
| Type |

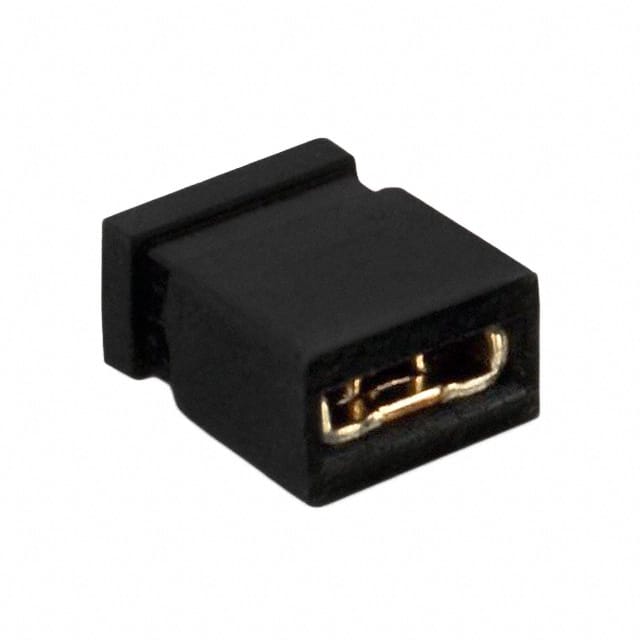

The Harwin M50-1900005 is a 2-position female receptacle jumper socket from the Archer M50 series, designed for 1.27mm pitch board-to-board connections. It features a closed top shunt configuration in a black housing made of 30% glass filled PBT with UL94 V-0 flammability rating.
The socket uses copper alloy contacts with gold flash finish and is rated for up to 1A current. It supports up to 300 mating cycles, making it suitable for applications requiring repeated connection changes. The 3.00mm height and 1.27mm pitch allow for compact PCB layouts.
This jumper socket is commonly used as an alternative to DIP switches for programming or configuration settings. The termination style is socket type, and the product comes in a jumper socket package. Contact finish thickness is 1.00µin gold.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.29 | $0.29 |
| 25+ | $0.26 | $0.26 |
| 100+ | $0.25 | $0.25 |
| 250+ | $0.23 | $0.23 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions arranged in a 1 x 2 grid.
The pitch is 1.27mm (0.050 inches).
The maximum current rating is 1A.
The housing is made of 30% glass filled Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating.
The contact finish is gold, with a thickness of 1.00µin (0.025µm).
It is rated for up to 300 mating cycles.
The housing color is black.
