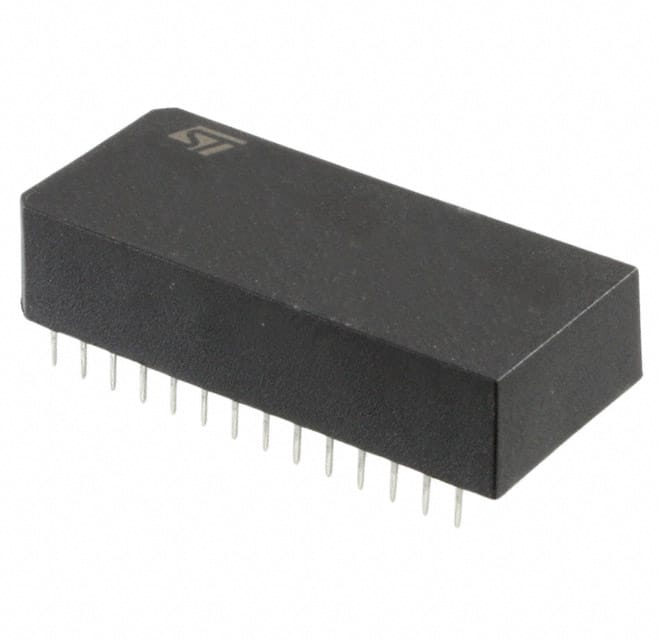

M48Z08-100PC1 The STMicroelectronics M48Z08-100PC1 is a 64 Kbit Non-Volatile SRAM with a parallel interface. It features a 100 ns access time and operates at 4.75V to 5.5V.
Mfr Part #:

M48Z08-100PC1

Available from 4 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics M48Z08-100PC1 is a 64 Kbit Non-Volatile SRAM with a parallel interface. It features a 100 ns access time and operates at 4.75V to 5.5V.
✓ Total Stock: 9,081 pcs
$ Price Range: $1.28

M48Z08-100PC1 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M48Z08-100PC1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Supplier Device Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

M48Z08-100PC1 Description

Short technical summary and product information.

The STMicroelectronics M48Z08-100PC1 is a 64 Kbit Non-Volatile SRAM (NVSRAM) designed for reliable data storage. This component utilizes a parallel interface and offers an access time of 100 ns, making it suitable for various memory applications.



Operating within a voltage range of 4.75V to 5.5V, the M48Z08-100PC1 is housed in a 28-PCDIP CAPHAT® package. Its through-hole mounting type facilitates integration into existing circuit designs. The NVSRAM technology ensures data retention without continuous power, combining the speed of SRAM with the non-volatility of EEPROM.



Key electrical characteristics include a memory organization of 8K x 8 and a write cycle time of 100 ns. The operating temperature range is from 0°C to 70°C (TA), providing operational stability in moderate environments. This part is identified by its manufacturer part number M48Z08-100PC1 and is a component within the broader Memory category.

M48Z08-100PC1 Quick Information

Product Type: NVSRAM
Canonical Name: STMicroelectronics M48Z08-100PC1 NVSRAM
Subcategory: NVSRAM

M48Z08-100PC1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M48Z08-100PC1 Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

M48Z08-100PC1 Features

  • 64 Kbit Non-Volatile SRAM.
  • 100 ns access and write cycle times.
  • Operates at 4.75V to 5.5V.
  • 28-PCDIP CAPHAT® package.
  • Through-hole mounting type.

M48Z08-100PC1 Applications

  • Suitable for data logging.
  • Used in embedded systems.
  • Ideal for configuration storage.
  • Applications requiring persistent memory.

M48Z08-100PC1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

4.75V to 5.5V.

What is the package type?

28-DIP Module (0.600", 15.24mm) with CAPHAT, through-hole mounting.

What is the operating temperature range?

0°C to 70°C (TA).

What is the memory size?

64Kbit (8K x 8).

What is the access time?

100 ns.

What is the memory technology?

NVSRAM (Non-Volatile SRAM).

What is the mounting type?

Through Hole.
