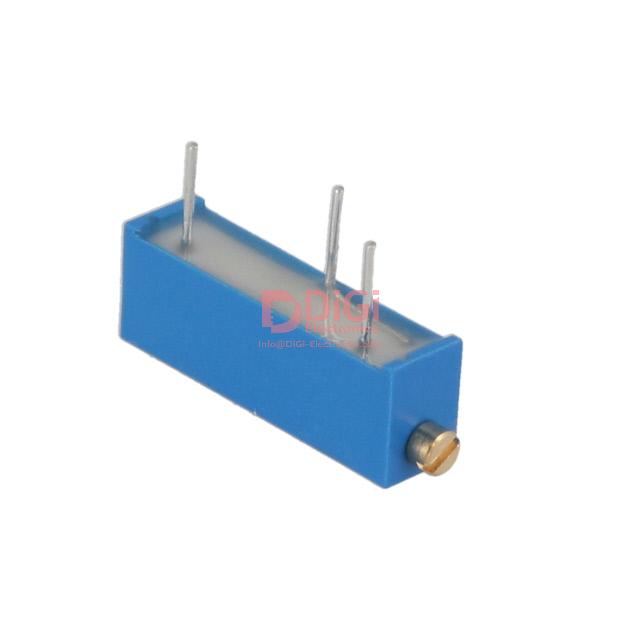

M43P501KB40 The Vishay Dale M43P501KB40 is a cermet trimmer potentiometer with 500 Ohms resistance and ±10% tolerance. It features a 0.75W power rating and PC Pins termination.
Mfr Part #:

M43P501KB40

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale M43P501KB40 is a cermet trimmer potentiometer with 500 Ohms resistance and ±10% tolerance. It features a 0.75W power rating and PC Pins termination.
✓ Total Stock: 111 pcs
$ Price Range: $0.05

M43P501KB40 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
Partservice ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M43P501KB40 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Spacing
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

M43P501KB40 Description

Short technical summary and product information.

The Vishay Dale M43P501KB40 is a cermet trimmer potentiometer designed for through-hole mounting. It offers a resistance value of 500 Ohms with a tolerance of ±10% and a power rating of 0.75W.



This potentiometer features 18 turns for precise adjustment and a side adjustment type. The resistive material is cermet, ensuring reliable performance. The termination style is PC Pins, suitable for direct soldering onto printed circuit boards.



The component has a temperature coefficient of ±100ppm/°C and a size of Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm). It is packaged in a box and has a standard package quantity of 200 units.

M43P501KB40 Quick Information

Product Type: Trimmer Potentiometer
Canonical Name: Vishay Spectrol M43P501KB40 Cermet Trimmer Potentiometer
Subcategory: Trimmer Potentiometer

M43P501KB40 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M43P501KB40 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

M43P501KB40 Features

  • 500 Ohms resistance with ±10% tolerance.
  • 0.75W power rating for reliable operation.
  • 18 turns for precise side adjustment.
  • Cermet resistive material for stability.
  • Through-hole mounting with PC Pins termination.

M43P501KB40 Applications

  • Ideal for circuit calibration tasks.
  • Suitable for electronic test equipment.
  • Used in control systems requiring adjustment.
  • Applicable in signal conditioning circuits.

M43P501KB40 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the M43P501KB40 trimmer potentiometer?

The resistance of the M43P501KB40 is 500 Ohms.

What is the tolerance of the M43P501KB40 potentiometer?

The tolerance of the M43P501KB40 is ±10%.

What is the power rating of the M43P501KB40?

The power rating of the M43P501KB40 is 0.75W, or 3/4W.

What is the temperature coefficient for the M43P501KB40?

The temperature coefficient for the M43P501KB40 is ±100ppm/°C.

How many turns does the M43P501KB40 have?

The M43P501KB40 has 18 turns.

What type of adjustment does the M43P501KB40 offer?

The M43P501KB40 offers side adjustment.

What is the resistive material of the M43P501KB40?

The resistive material of the M43P501KB40 is Cermet.
