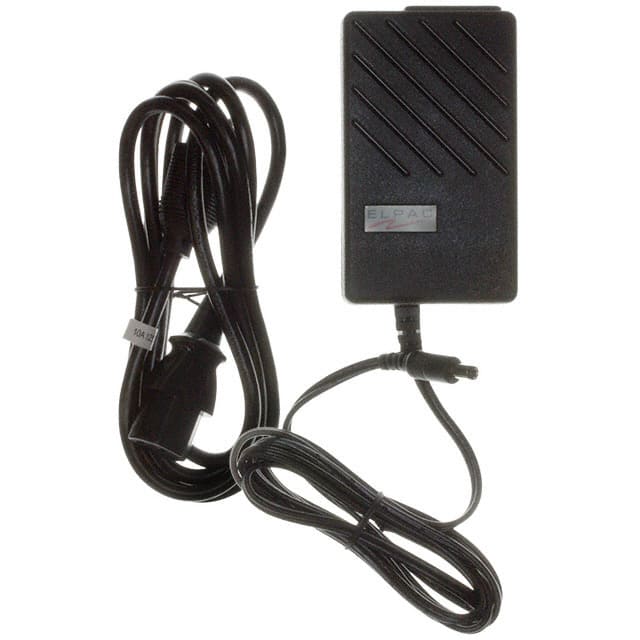

The Inventus Power M42012-760 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 12V output with a current rating of 1.7A, delivering a total power of 20W. The adapter features a 75% efficiency and operates reliably within an ambient temperature range of 0°C to 40°C.
Designed with a standard IEC 320-C14 input connector and a barrel plug output (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization, this Class I desktop adapter is suitable for North American regions. Its physical dimensions are 108.0mm in length, 64.5mm in width, and 33.0mm in height.
This adapter is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited moisture sensitivity. It is also REACH unaffected.
100-240V AC.
12V at 1.7A.
0°C to 40°C.
IEC 320-C14 input; barrel plug output (2.5mm ID x 5.5mm OD x 9.5mm).
20W with 75% efficiency.
Positive center.
ITE (Commercial) applications.
