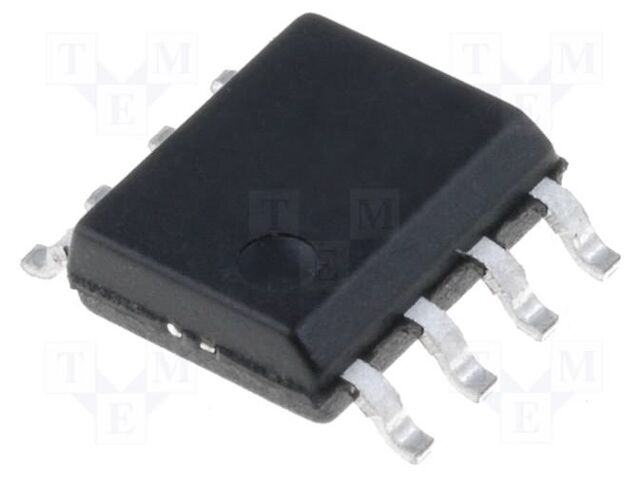

M41T56M6E The STMicroelectronics M41T56M6E is a Real Time Clock IC featuring an I2C serial interface and 56 bytes of NV RAM. It operates from a 4.5 to 5.5V DC supply.
Mfr Part #:

M41T56M6E

Available from 2 distributors
Mfr Name: ST
ST
The STMicroelectronics M41T56M6E is a Real Time Clock IC featuring an I2C serial interface and 56 bytes of NV RAM. It operates from a 4.5 to 5.5V DC supply.
✓ Total Stock: 68,830 pcs
$ Price Range: $3.00

M41T56M6E Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
60,267 pcs
On Request
60267 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
8,563 pcs
On Request
8563 pcs On Request 1 On Request On Request 1547+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M41T56M6E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Interface
Mounting Type
Supply Voltage
View Similar Products (0)

M41T56M6E Description

Short technical summary and product information.

The STMicroelectronics M41T56M6E is an integrated circuit designed for real-time clock applications. It features an I2C serial interface for communication and includes 56 bytes of Non-Volatile RAM (NV RAM) for data storage.



This RTC circuit operates within a supply voltage range of 4.5 to 5.5V DC and consumes a typical DC supply current of 300µA. It supports standard clock formats (HH:MM:SS) and date formats (YY-MM-DD), with a clock frequency of 32.768kHz.



The M41T56M6E is supplied in an SO8 surface-mount package, making it suitable for various electronic designs. Its combination of RTC functionality, NV RAM, and a common interface makes it a versatile component for timekeeping and data logging in embedded systems.

M41T56M6E Quick Information

Product Type: Real Time Clock IC
Series: M41T56
Canonical Name: ST M41T56M6E Real Time Clock IC
Subcategory: Real Time Clocks

M41T56M6E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M41T56M6E Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

M41T56M6E Features

  • Real Time Clock IC with NV RAM
  • I2C serial interface
  • 56 bytes of non-volatile memory
  • 4.5 to 5.5V DC supply voltage
  • SO8 surface-mount package

M41T56M6E Applications

  • Embedded systems timekeeping
  • Data logging applications
  • Industrial control systems
  • Consumer electronics devices

M41T56M6E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the M41T56M6E?

4.5 to 5.5 V DC.

What package type does the M41T56M6E come in?

SOIC-8 (SO8) surface mount package.

What is the clock frequency of the M41T56M6E?

32.768 kHz.

How much memory does the M41T56M6E have?

56 bytes.

What interface does the M41T56M6E use?

I2C serial interface.

What time format does the M41T56M6E support?

HH:MM:SS.

What date format does the M41T56M6E support?

YY-MM-DD.
