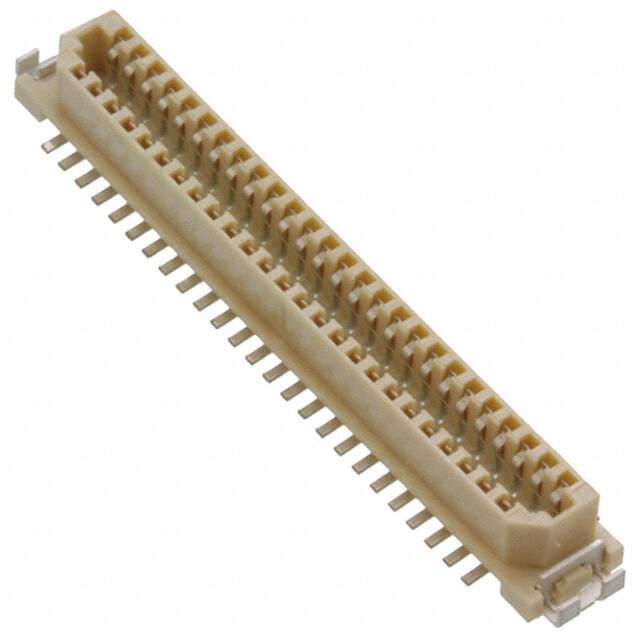

M40-6205146 51-position, 1.00mm pitch surface-mount receptacle connector with outer shroud contacts. Features board guide and solder retention, tin contact finish, and LCP housing rated UL94 V-0.
Mfr Part #:

M40-6205146

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
51-position, 1.00mm pitch surface-mount receptacle connector with outer shroud contacts. Features board guide and solder retention, tin contact finish, and LCP housing rated UL94 V-0.
✓ Total Stock: 144 pcs
$ Price Range: $3.41

M40-6205146 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
144 pcs
On Request
144 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M40-6205146 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Features
Height Above Board
Housing Material
Industrial Grade
Lead Spacing
Lead Style
Mated Stacking Heights
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
SVHC Present
View Similar Products (0)

M40-6205146 Description

Short technical summary and product information.

The M40-6205146 is a 51-position, 2-row, 1.00mm pitch surface-mount receptacle connector from Harwin's M40 series. It features outer shroud contacts with tin plating (80µin thickness) over phosphor bronze contacts, and a liquid crystal polymer (LCP) housing rated UL94 V-0. The connector includes board guide and solder retention features for reliable assembly. It has a height above board of 3.30mm and a mated stacking height of 4.3mm, making it suitable for compact mezzanine board-to-board applications. The operating temperature range is -20°C to +125°C. The retainer is made of brass. This connector is RoHS3 compliant and has an MSL of 1 (unlimited).

M40-6205146 Quick Information

Product Type: Receptacle Connector, Outer Shroud Contacts
Series: M40-620
Canonical Name: Connector, Receptacle, Outer Shroud Contacts, 51 Position, 1.00mm Pitch, Surface Mount
Subcategory: Mezzanine (Board to Board) Connector

M40-6205146 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M40-6205146 Estimated Pricing

Qty Low High
90+ $3.41 $3.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

M40-6205146 Features

  • 51-position, 2-row, 1.00mm pitch connector.
  • Surface-mount with tin-plated contacts.
  • Board guide and solder retention features.
  • Operating temperature from -20°C to +125°C.
  • Mated stacking height of 4.3mm.

M40-6205146 Applications

  • Suitable for mezzanine board-to-board applications.
  • Used in compact electronic assemblies.
  • Ideal for high-density PCB designs.
  • Suitable for applications requiring board guide.

M40-6205146 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

51 positions.

What is the pitch?

1.00mm (0.039").

What is the mounting type?

Surface Mount.

What is the contact finish?

Tin with 80.0µin (2.03µm) thickness.

What is the operating temperature range?

-20°C to +125°C.

What is the mated stacking height?

4.3mm.

What features does the connector have?

Board guide and solder retention.
