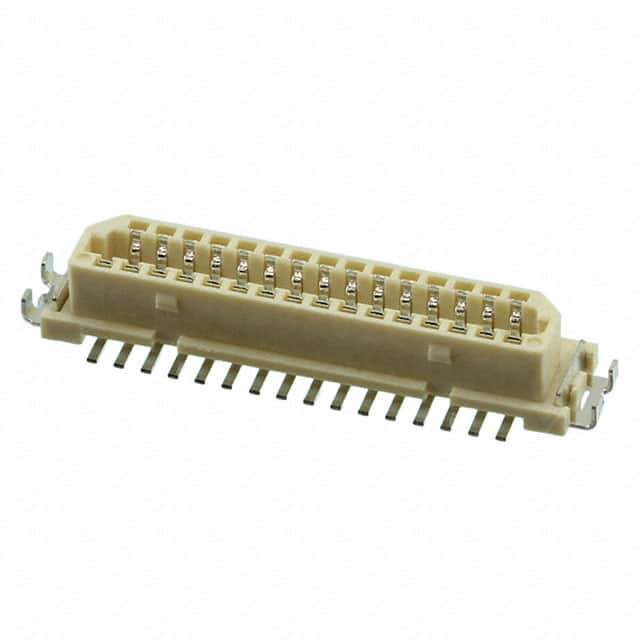

M40-6203146R 31 position, 2 row, 1.00mm pitch receptacle connector with outer shroud contacts. Surface mount, tin plated contacts, with board guide and solder retention features.
Mfr Part #:

M40-6203146R

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
31 position, 2 row, 1.00mm pitch receptacle connector with outer shroud contacts. Surface mount, tin plated contacts, with board guide and solder retention features.
✓ Total Stock: 2,000 pcs
$ Price Range: $2.42 - $4.32

M40-6203146R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M40-6203146R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Features
Height Above Board
Housing Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Temperature Range
Termination Style
View Similar Products (0)

M40-6203146R Description

Short technical summary and product information.

This is a 31 position, 2 row, 1.00mm pitch female receptacle connector from Harwin's M40 series. It features outer shroud contacts and is designed for surface mount (SMT) mounting. The connector has a mated stacking height of 4.3mm and height above board of 3.30mm.



The housing is made of LCP material with UL94V-0 flammability rating. Contacts are phosphor bronze with tin finish (80.0µin thickness). The connector includes board guide features for alignment and solder retention tabs for strain relief.



This connector operates over a temperature range of -20°C to +125°C. Packaging is tape and reel. Compliance includes RoHS3, REACH unaffected, and MSL 1 (unverified).

M40-6203146R Quick Information

Product Type: Receptacle Connector
Series: M40-620
Canonical Name: 31 Position 1.00mm Pitch Receptacle, Outer Shroud Contacts, Surface Mount, Tin
Subcategory: Board-to-Board Connector

M40-6203146R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M40-6203146R Estimated Pricing

Qty Low High
1+ $4.32 $4.32
10+ $3.67 $3.67
250+ $2.93 $2.93
500+ $2.78 $2.78
1,000+ $2.57 $2.57
2,500+ $2.42 $2.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

M40-6203146R Features

  • 31 positions in 2 rows.
  • 1.00mm pitch fine-pitch spacing.
  • Surface mount with SMT termination.
  • Tin plated phosphor bronze contacts.
  • Board guide and solder retention features.

M40-6203146R Applications

  • Ideal for board-to-board stacking applications.
  • Used in compact electronic assemblies.
  • Suitable for high-density PCB designs.
  • Designed for mezzanine connector systems.

M40-6203146R FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the M40-6203146R have?

31 positions in 2 rows.

What is the pitch of this connector?

1.00mm (0.039") pitch.

What is the mounting type?

Surface mount (SMT).

What is the operating temperature range?

-20°C to +125°C.

What contact finish is used?

Tin plating with 80.0µin thickness.

What is the mated stacking height?

4.3mm.
