| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Temperature Range | |
| Termination Style | |
| Voltage Rating |

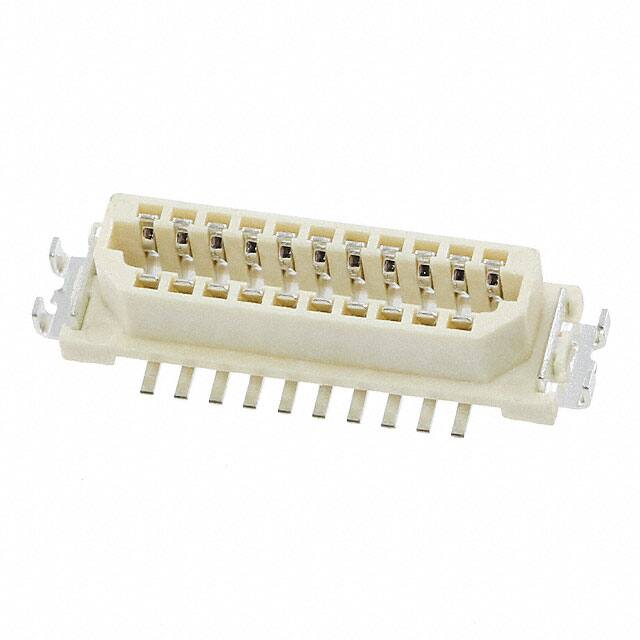

The Harwin M40-6202146 is a 21-position, 2-row, 1.00mm pitch surface mount receptacle designed for mezzanine board-to-board applications. It features outer shroud contacts with tin finish (80µin thickness) and offers a mated stacking height of 4.3mm. The connector includes board guide and solder retention features for secure placement during assembly.
This component is rated for 1.0A AC/DC current and 150V AC/DC voltage, with a maximum initial contact resistance of 20mΩ and minimum insulation resistance of 1,000MΩ. It can withstand 500V AC dielectric strength for 1 minute. The housing is made of LCP (UL94V-0 rated) and contacts are phosphor bronze. Operating temperature range is -20°C to +125°C.
Mechanical characteristics include a maximum insertion force of 1.5N per contact, minimum withdrawal force of 0.1N per contact, durability of 300 cycles, and contact retention of 1.47N minimum (for M40-320 housing). The connector is surface mount with solder termination, suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 75+ | $0.99 | $0.99 |
| 300+ | $0.96 | $0.96 |
| 1,125+ | $0.93 | $0.93 |
| 5,005+ | $1.71 | $1.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
21 positions arranged in 2 rows.
1.00mm (0.039 inches).
1.0A AC/DC.
150V AC/DC.
Surface Mount (SMD) with solder termination.
4.3mm.
-20°C to +125°C.
