| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
108 pcs
|
108 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Tape & Reel |

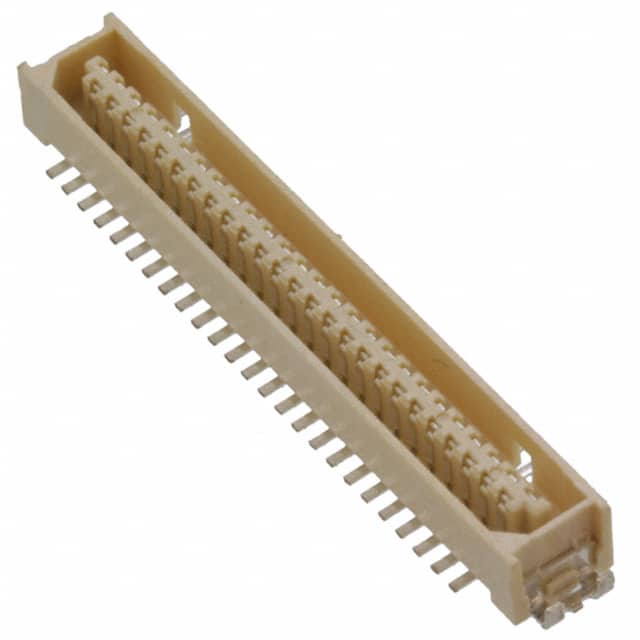

The Harwin M40-6005146 is a 51-position, 2-row, 1.00mm pitch surface mount plug connector from the M40 series. It features tin-plated phosphor bronze contacts with 80µin thickness, an LCP housing rated UL94V-0, and a mated stacking height of 4.3mm. The connector includes a board guide and solder retention features for reliable assembly. Operating temperature range is -20°C to +125°C. This plug is designed for board-to-board mezzanine applications requiring high-density interconnection in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 90+ | $3.26 | $3.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
51 positions in 2 rows.
1.00mm (0.039").
Surface mount.
-20°C to +125°C.
Tin with 80µin (2.03µm) thickness.
Board guide and solder retention.
LCP housing with UL94V-0 rating.
