| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Polarization | |
| Tape & Reel | |
| Termination Style |

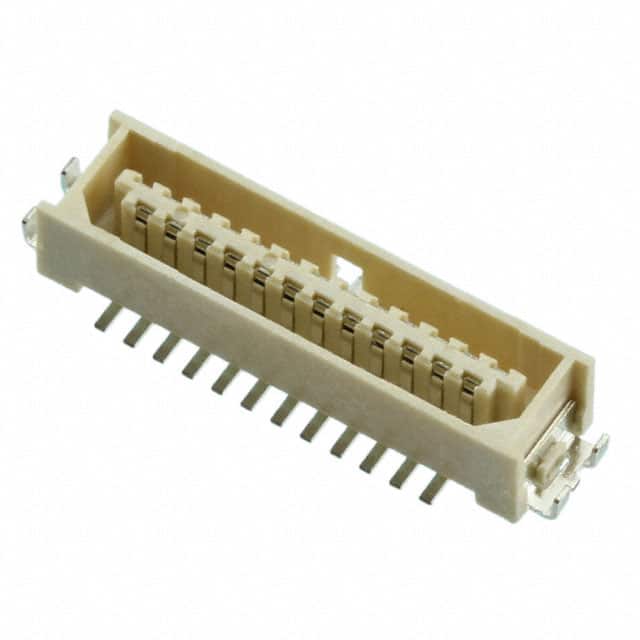

The Harwin M40-6002546R is a 25 position male plug connector from the M40-600 series, designed for fine-pitch board-to-board and mezzanine stacking applications. It features a double row straight surface mount configuration with staggered contact layout on a 1.00mm pitch. The polarized housing includes location pegs for accurate PCB placement and SMT hold-down tabs for enhanced strain relief.
This connector utilizes phosphor bronze contacts with a tin finish (80.0µin/2.03µm) for reliable conductivity. The housing is made from LCP material rated UL94V-0, and the retainer is brass. It supports a mated stacking height of 4.3mm and has a height above board of 3.30mm. Operating temperature ranges from -20°C to +125°C, making it suitable for industrial and automotive environments.
Electrical ratings per the datasheet include a current rating of 1.0A AC/DC, voltage rating of 150V AC/DC, contact resistance of 20mΩ max initial, dielectric withstanding voltage of 500V AC for 1 minute, and insulation resistance of 1,000MΩ min. The connector is supplied in tape and reel packaging for automated assembly.
Key design features incorporate board guide and solder retention for robust mechanical attachment. The staggered row contacts ensure reliable signal integrity in dense PCB layouts. This connector is ideal for applications requiring compact, high-density interconnection in limited board space.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $1.79 | $1.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 25 positions arranged in 2 rows with a staggered layout.
The pitch is 1.00mm (0.039 inches).
The current rating is 1.0A AC/DC per contact based on the datasheet for the M40-600/620 series.
The voltage rating is 150V AC/DC per the datasheet for the M40-600/620 series.
It is a surface mount (SMT) connector with solder termination.
The operating temperature range is -20°C to +125°C.
The contact finish is tin with a thickness of 80.0µin (2.03µm).
