| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

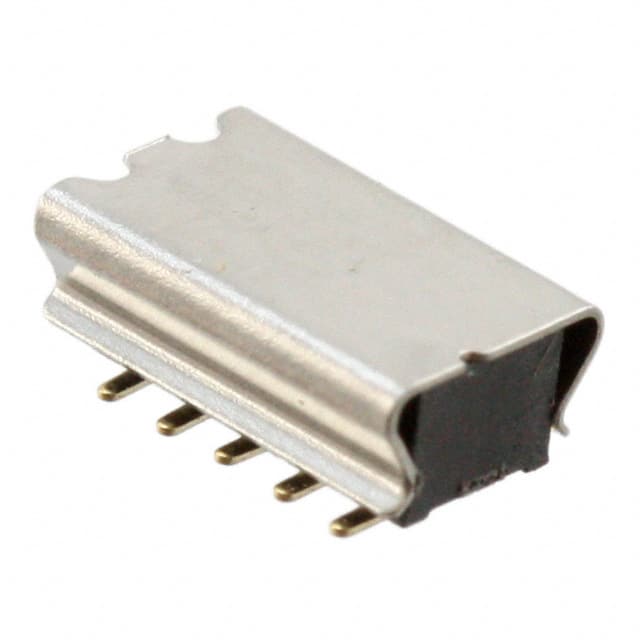

The M40-3100545R is a 10 position (5+5), 1.00mm pitch, double row receptacle from the M40 series by Harwin Inc. This board to board connector features a female socket (receptacle) with gold flash contacts on phosphor bronze, ensuring reliable electrical performance. The housing is made of glass-filled PA6T with a UL94 V-0 flammability rating, and the connector is designed for surface mount soldering. It includes board guide and pick and place features for automated assembly.
Electrical ratings include a current rating of 1.0A per contact, voltage rating of 150V AC/DC, contact resistance of 20mΩ initial, and insulation resistance of 1,000MΩ minimum. The dielectric withstanding voltage is 500V AC for 1 minute. Operating temperature range is -40°C to +105°C.
Mechanical characteristics include a mated stacking height of 4.25mm, insertion force of 1.5N per contact maximum, withdrawal force of 0.1N minimum, and durability of 300 cycles. The connector is packaged in tape and reel for automated placement.
This receptacle is suitable for various board-to-board interconnection applications requiring a compact 1.00mm pitch and reliable gold-plated contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.20 | $2.20 |
| 10+ | $1.88 | $1.88 |
| 100+ | $1.60 | $1.60 |
| 250+ | $1.59 | $1.59 |
| 500+ | $1.43 | $1.43 |
| 1,000+ | $1.37 | $1.37 |
| 2,000+ | $1.28 | $1.28 |
| 4,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions (5+5).
1.00mm (0.039").
1.0A per contact.
150V AC/DC.
Surface mount.
-40°C to +105°C.
Gold flash.
