| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

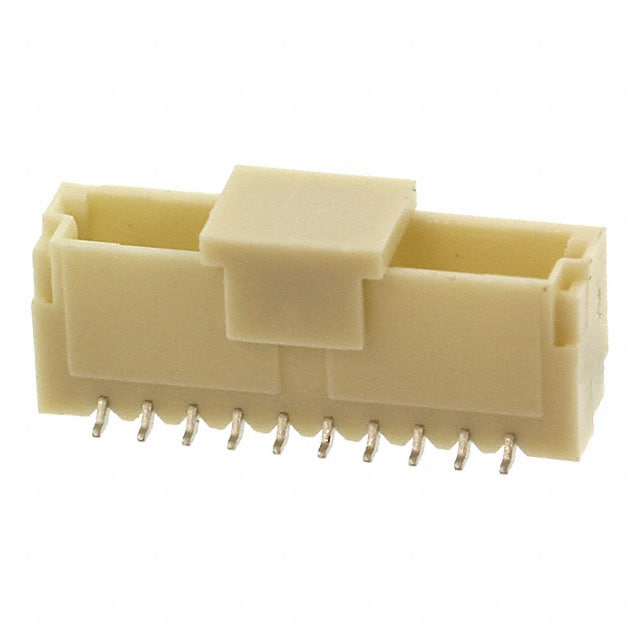

The M40-3011046 is a 10-position single-row header from Harwin Inc. It features a 1.00mm pitch and a shrouded 4-wall design for secure mating with cable assemblies. The connector is surface mount (SMD) with solder termination and includes pick-and-place and solder retention features for automated assembly.
Rated for 50V and 1A, this header uses phosphor bronze contacts with tin finish and polyamide PA9T insulation rated UL94 V-0. The operating temperature range is -25°C to 85°C. A detent lock fastening ensures reliable connection in vibration-prone environments.
Designed for board-to-cable/wire styles, this connector is ideal for compact electronic devices requiring a low-profile, high-density interface.
| Qty | Low | High |
|---|---|---|
| 500+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in a single row.
1.00mm (0.039 inches).
1A.
50V.
Surface mount (SMD).
-25°C to 85°C.
Yes, it has a 4-wall shrouded design.
