| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

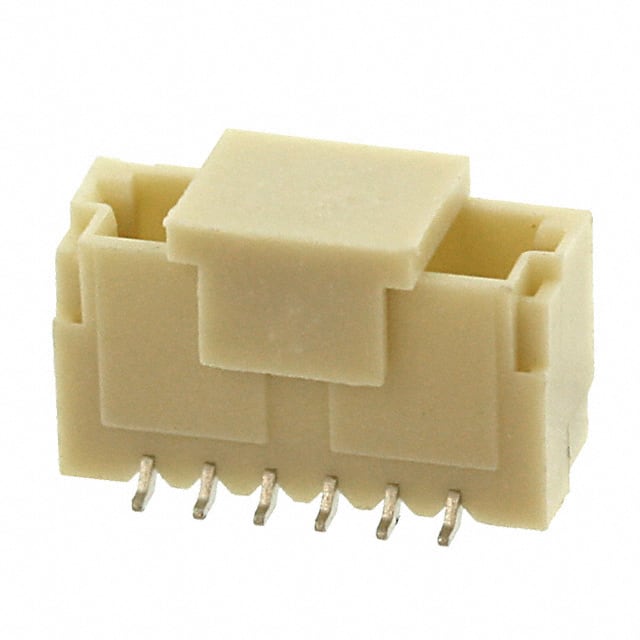

The Harwin M40-3010646 is a 6-position, single row, shrouded header from the M40 series. It features a 1.00mm pitch and is designed for surface mount (SMD) termination, making it suitable for compact board-to-cable/wire interconnections.
This connector uses phosphor bronze male pin contacts with a tin finish, housed in a natural polyamide (PA9T, Nylon 9T) insulator. It is fully shrouded with a 4-wall design and includes a detent lock fastening type for secure mating. The insulation height is 4.30mm.
Rated for 1A current and 50V, the M40-3010646 operates over a temperature range of -25°C to 85°C. It includes features for pick and place assembly and solder retention. The insulator material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M40-3010646 has 6 positions in a single row.
The pitch is 1.00mm.
The current rating is 1A.
The voltage rating is 50V.
The mounting type is Surface Mount (SMD).
The operating temperature range is -25°C to 85°C.
The contacts are made of phosphor bronze with a tin finish.
