| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

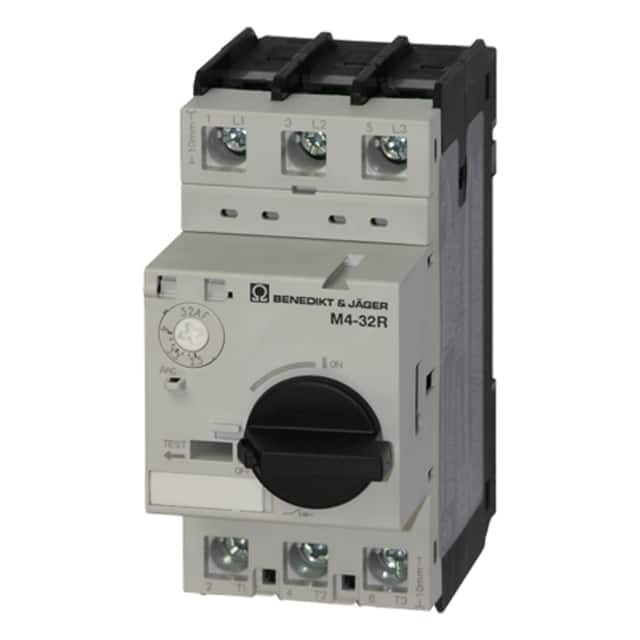

The Benedict GmbH M4-32R-6 is a Motor Protection Circuit Breaker designed for reliable motor protection. It features a current rating of 6A and a voltage rating of 600V AC/DC.
This circuit breaker utilizes a rotary actuator for operation and is designed for DIN rail mounting, making it suitable for various industrial control panel applications. The M4-32R-6 offers a short circuit breaking capacity of 100kA at 3~400V, ensuring safety and protection against overcurrents.
Key specifications include a 3-pole configuration and a setting range of 4-6A. The device is compliant with CE, cULus, and SEV approval standards. It is also RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M4-32R-6 circuit breaker has a current rating of 6A.
The M4-32R-6 has a voltage rating of 600V.
The M4-32R-6 uses a rotary actuator.
The M4-32R-6 has 3 poles.
The short circuit breaking capacity of the M4-32R-6 is 100kA at 3~400V.
The M4-32R-6 is designed for DIN rail mounting.
