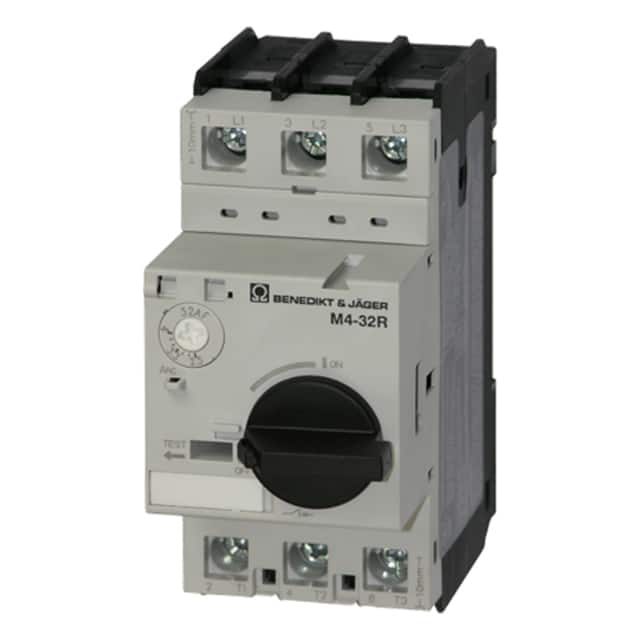

This Motor Protection Circuit Breaker (MPCB) from Benedict GmbH, model M4-32R-32, is designed for reliable motor circuit protection. It features a rotary actuator and a 3-pole configuration, suitable for industrial applications.
The M4-32R-32 offers a current rating of 32A and a voltage rating of 600V. It has a short circuit breaking capacity of 416A at 3~400V and an overload release setting range of 22-32A. The breaker is designed for DIN rail mounting, facilitating easy integration into control panels and electrical enclosures.
Key specifications include a 3-pole design and a rotary actuator for operation. The unit is compliant with CE, cULus, and SEV approval agencies. It is also RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
This circuit breaker is ideal for protecting electric motors against overloads and short circuits in various industrial machinery and automation systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 32A.
The voltage rating is 600V.
It has 3 poles.
It uses a rotary actuator.
The overload release setting range is 22-32A.
The short circuit breaking capacity is 416A at 3~400V.
It is mounted on a DIN rail.
