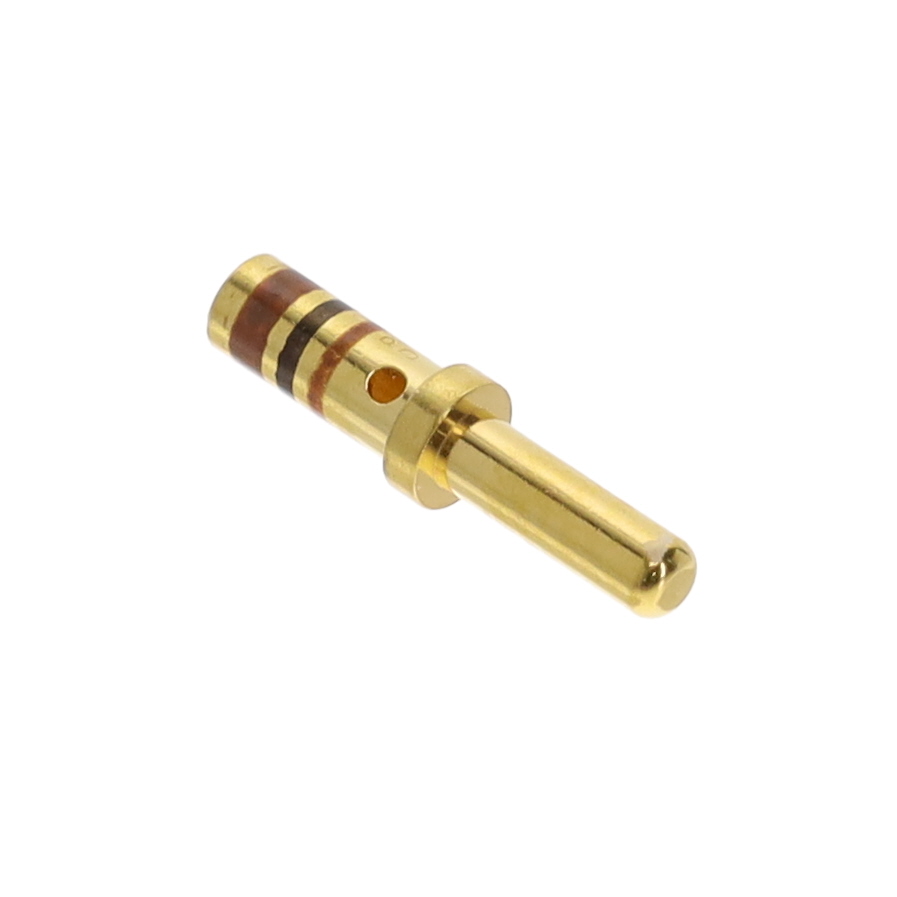

M39029/1-101 Contact size 16 pin for circular connectors, 20 AWG wire, gold finish, crimp termination.
Mfr Part #:

M39029/1-101

Available from 1 distributors
Mfr Name: Preci-Dip
Preci-Dip
Contact size 16 pin for circular connectors, 20 AWG wire, gold finish, crimp termination.
✓ Total Stock: 1,901 pcs

M39029/1-101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1,901 pcs
On Request
1901 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M39029/1-101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Contact Size
Contact Termination
Contact Type
Lead Style
Military Grade
SVHC Present
Type
Wire Gauge or Range
View Similar Products (0)

M39029/1-101 Description

Short technical summary and product information.

The M39029/1-101 is a machined power pin contact from Preci-Dip, designed for use in circular connector systems. It features a contact size of 16 and accepts 20 AWG wire, making it suitable for power and signal applications in demanding environments.



Constructed from copper alloy with a gold finish of 50.0µin (1.27µm) thickness, this contact provides reliable conductivity and corrosion resistance. Termination is via crimp, ensuring secure mechanical and electrical connections.



This contact is the male (pin) style in the M39029 series and is intended for MIL-DTL-38999 and other circular connector types.

M39029/1-101 Quick Information

Product Type: Circular Connector Contact
Series: Military, MIL-C-39029
Canonical Name: M39029/1-101 Circular Connector Contact, Size 16, Pin, 20 AWG, Crimp, Gold
Subcategory: Circular Connector Contacts

M39029/1-101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M39029/1-101 Features

  • Contact size 16 pin for 20 AWG wire.
  • Gold finish with 50.0µin thickness.
  • Crimp termination for reliable connections.
  • Machined copper alloy construction.
  • Power and signal rated contact.

M39029/1-101 Applications

  • Used in MIL-DTL-38999 circular connectors.
  • Ideal for aerospace and military wiring.
  • Suitable for power distribution in harsh environments.
  • Employed in industrial and defense interconnect systems.

M39029/1-101 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the wire gauge for M39029/1-101?

20 AWG.

Is this contact a pin or socket?

Pin (male).

What is the contact size?

Size 16.

What is the termination style?

Crimp.

What is the contact finish thickness?

50.0µin (1.27µm) gold.

What is the contact material?

Copper alloy.

Is the contact RoHS compliant?

Listed as RoHS3 compliant, but this status is unverified.
