| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dimensions | |
| Failure Rate | |
| Industrial Grade | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Rated Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type |

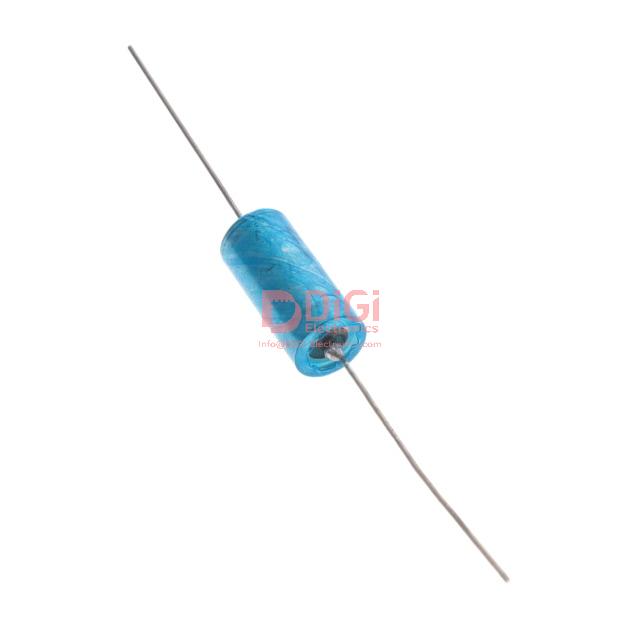

This Vishay Sprague M39003/01-2548 is a high-reliability tantalum capacitor designed for demanding applications. It offers a capacitance of 27µF with a tight tolerance of ±10%, making it suitable for precise filtering and timing circuits.
The capacitor is rated for a maximum working voltage of 35V and operates within a temperature range of -55°C to 125°C. Its hermetically sealed construction ensures protection against environmental factors, contributing to its robust performance.
Featuring an axial package and through-hole mounting type, this component is designed for easy integration into printed circuit boards. The M39003/01-2548 belongs to the Military, MIL-PRF-39003/1, CSR13 series, indicating its suitability for military and high-reliability applications. It has a low failure rate of 0.1% and is marked as active.
Key electrical characteristics include its 27µF capacitance and ±10% tolerance. The axial package dimensions are 0.351" Dia x 0.786" L (8.92mm x 19.96mm). This component is built for high reliability, with a specified failure rate of P (0.1%).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
27 µF.
35 V.
±10%.
Axial package, through-hole mounting.
-55°C to 125°C.
0.1% per 1000 hours.
MIL-PRF-39003/1, CSR13 series.
