M3251 Heyco M3251 Flex Liquid Tight Cordgrip with 1/2 NPT threads. It accepts cables from 0.170 to 0.450 inches and is rated IP68.
Mfr Part #:

M3251

Available from 1 distributors
Mfr Name: Heyco Products Corporation
Heyco Products Corporation
Heyco M3251 Flex Liquid Tight Cordgrip with 1/2 NPT threads. It accepts cables from 0.170 to 0.450 inches and is rated IP68.
✓ Total Stock: 2 pcs
$ Price Range: $1.19 - $2.16

M3251 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M3251 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Includes
Ingress Protection
Material
Mounting Type
Operating Temperature
Outside Cable Diameter (Max)
Outside Cable Diameter (Min)
Panel Hole Size
Tape & Reel
Termination Style
Thread Length
Thread Size
Type
View Similar Products (0)

M3251 Description

Short technical summary and product information.

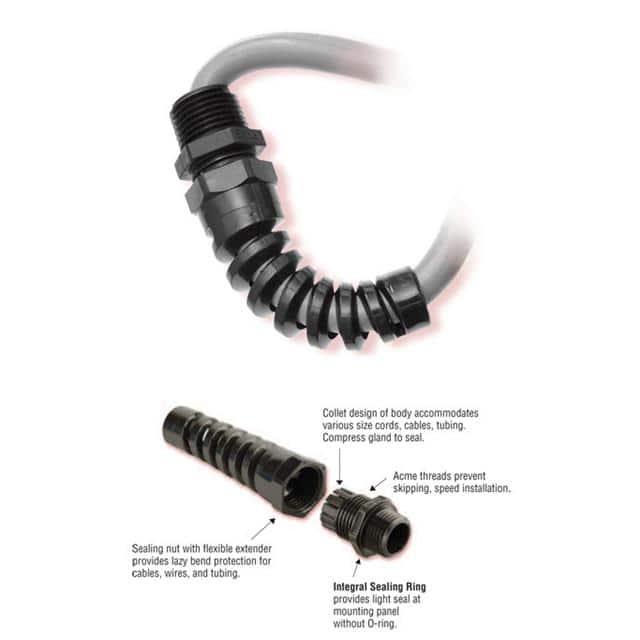

The Heyco M3251 is a Flex Liquid Tight Cordgrip designed for panel mounting with 1/2 NPT threads. It provides reliable strain relief and sealing for cables, wires, and tubing in demanding environments.



This cordgrip accepts cables with diameters from 0.170 to 0.450 inches (4.32 to 11.43 mm). The housing is made of Nylon 6/6 (PA66) with a Buna N or TPE sealing gland, offering resistance to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. It features an integral sealing ring for a tight seal at the mounting panel without requiring an O-ring.



The M3251 is rated IP68, making it dust tight and waterproof. It operates at temperatures from -40°C to 115°C static and -20°C to 100°C dynamic. The flammability rating is UL 94V-2. Locknuts are not included. The flexible pigtail extender prevents sharp bends and extends cable life.

M3251 Quick Information

Product Type: Liquid Tight Cordgrip
Canonical Name: Heyco M3251 Flex Liquid Tight Cordgrip, 1/2 NPT, Black
Subcategory: Cable and Cord Grips

M3251 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M3251 Estimated Pricing

Qty Low High
1+ $2.16 $2.16
10+ $1.85 $1.85
25+ $1.73 $1.73
50+ $1.65 $1.65
100+ $1.57 $1.57
250+ $1.47 $1.47
500+ $1.39 $1.39
1,000+ $1.27 $1.27
2,500+ $1.19 $1.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

M3251 Features

  • 1/2 NPT threaded panel mount.
  • IP68 rated for dust and water.
  • Accepts cables 0.170-0.450 in diameter.
  • Nylon 6/6 construction with Buna N or TPE seal.
  • Flammability rating UL 94V-2.

M3251 Applications

  • Provides liquid-tight strain relief for cables.
  • Suitable for industrial enclosures and junction boxes.
  • Used in NEMA 4, 4X, 6, and 6P environments.
  • Flexible pigtail prevents sharp cable bends.

M3251 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the M3251 cordgrip?

Static: -40°C to 115°C; Dynamic: -20°C to 100°C.

Is the M3251 RoHS compliant?

It is marked as RoHS3 Compliant, but this is unverified.

What ingress protection rating does the M3251 have?

IP68, dust tight and waterproof.

What thread size is the M3251 cordgrip?

1/2 NPT.

What cable diameters does the M3251 accept?

From 0.170 to 0.450 inches (4.32 to 11.43 mm).

What is the material construction of the M3251?

Nylon 6/6 housing with Buna N or TPE sealing gland.

Does the M3251 include a locknut?

No, locknuts are not included.
