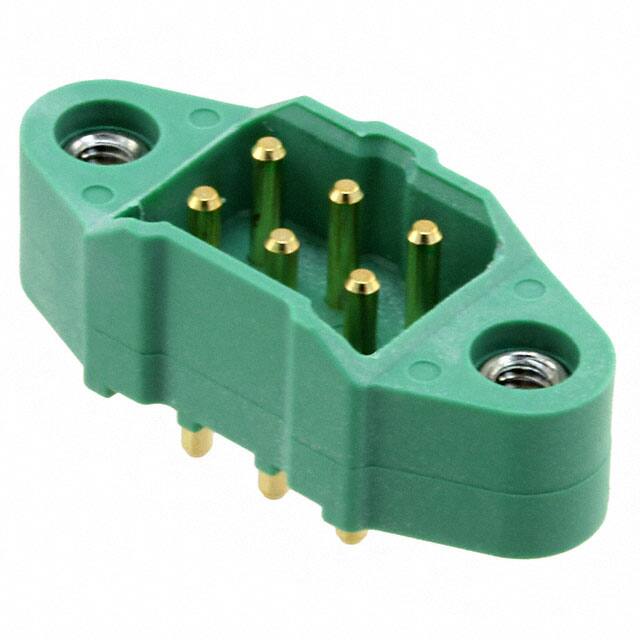

The Harwin M300-MV30645M1 is a 6-position, double-row header from the M300 series of 3.00mm pitch power connectors. It features a fully shrouded 4-wall design with threaded fastening for secure mating. The header is through-hole mounted and terminated with solder contacts.
Designed for board-to-board, cable-to-board, and cable-to-cable applications, the connector uses brass male pins with gold plating (29.5µin) for high reliability. The insulation is made of green glass-filled polyamide (PA46) with a UL94 V-0 flammability rating, operating from -65°C to 175°C.
Electrical ratings include 10A current per contact, 600VAC/DC voltage rating, and low contact resistance of 6mΩ. The dielectric withstanding voltage is 1800V at sea level and 450V at high altitude. The connector includes a mating flange feature and is RoHS3 compliant, with MSL 1 and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.76 | $8.76 |
| 12+ | $7.35 | $7.35 |
| 24+ | $6.97 | $6.97 |
| 60+ | $6.89 | $6.89 |
| 108+ | $6.28 | $6.28 |
| 504+ | $5.65 | $5.65 |
| 1,008+ | $5.38 | $5.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions, all loaded, arranged in 2 rows.
The pitch is 3.00mm (0.118 inches).
The current rating is 10A per contact.
The voltage rating is 600VAC/DC.
The connector is through-hole mounted.
The operating temperature range is -65°C to 175°C.
The insulation is made of green glass-filled polyamide (PA46) with a UL94 V-0 flammability rating.
