| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,947 pcs
|
1947 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

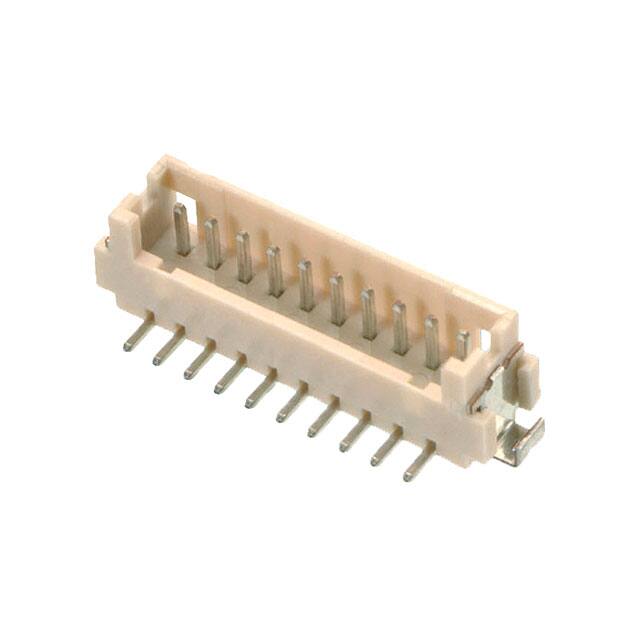

The M30-6001046 from Harwin is a 10-position single row surface mount pin header with a 1.25mm pitch. It features a fully shrouded 4-wall design with a detent lock fastening system for secure mating with cable housings. The header is rated for 1A per contact and 150V, with a contact resistance of 30mΩ max and insulation resistance of 500MΩ min. The contacts are brass with a 80µin tin finish, and the insulation is natural nylon 6T rated UL94 V-0. This connector includes board guide and solder retention features for reliable PCB mounting. Operating temperature range is -25°C to +85°C. Supplied in tubes.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.39 | $4.39 |
| 25+ | $3.43 | $3.43 |
| 50+ | $3.42 | $3.42 |
| 99+ | $3.10 | $3.10 |
| 528+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 10 positions in a single row.
The pitch is 1.25mm.
The current rating is 1A per contact.
The voltage rating is 150V AC/DC.
Surface mount (SMD).
-25°C to +85°C.
It has a shrouded 4-wall design with detent lock fastening, board guide, and solder retention.
