| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Lead Spacing | |
| Lead Style | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature Range | |
| Supply Voltage |

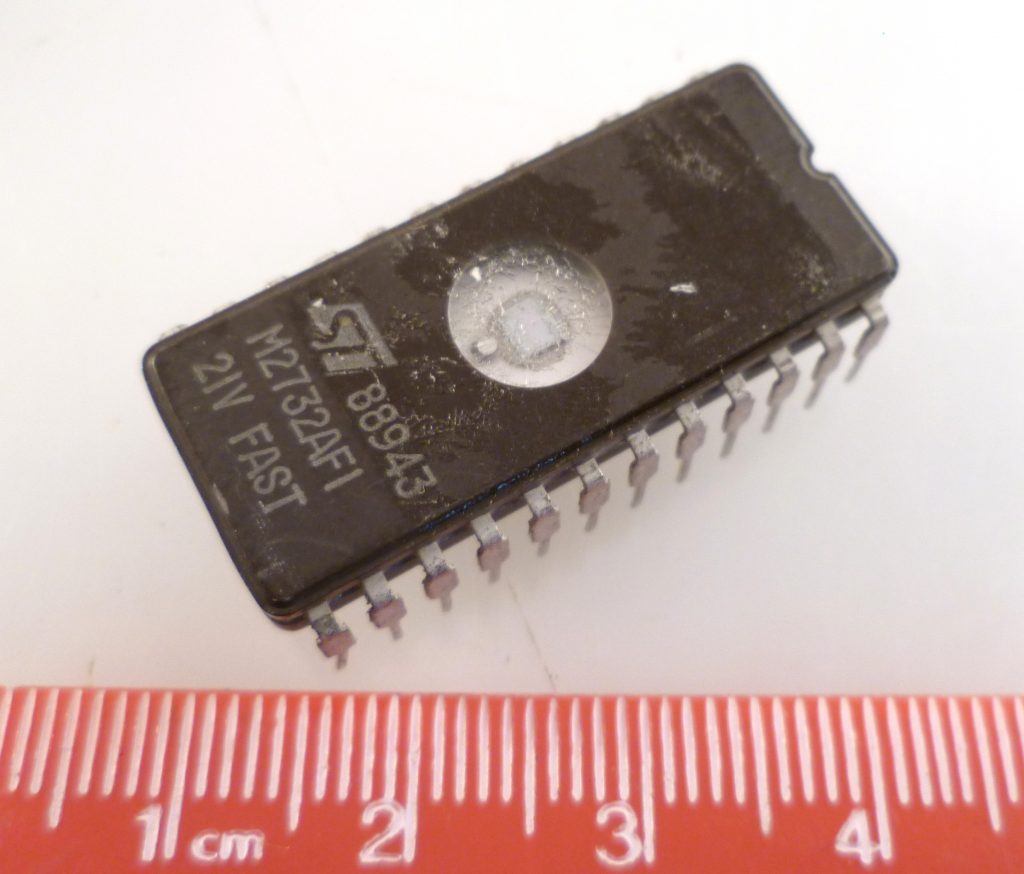

The ST M2732AFI is a 32,768-bit UV erasable and electrically programmable read-only memory (EPROM). Organized as 4,096 words by 8 bits, this component is designed for applications requiring fast turn-around and pattern experimentation.
Key electrical specifications include a fast access time of 200ns and a single 5V power supply. It also features a low standby current of 35mA maximum. The inputs and outputs are TTL compatible during read and program operations, and the device is completely static.
The M2732AFI is housed in a 24-pin Window Ceramic Frit-Seal Dual-in-Line (CDIP24) package. The transparent lid allows for erasure of the bit pattern using ultraviolet light, after which a new pattern can be programmed following the manufacturer's procedure. This EPROM is suitable for extended temperature range applications.
This part was retrieved from a Le Croy Model 6810 waveform recorder and classified as used but in very good condition. Pins may require minor straightening, and the chip will need erasing before reprogramming.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M2732AFI has a memory size of 32.768 kbit, organized as 4096 words by 8 bits.
The access time is 200 ns.
The M2732AFI operates from a single 5V supply voltage.
The M2732AFI is housed in a CDIP24 (Ceramic Dual In-line Package) with 24 pins.
The maximum standby current is 35 mA.
The M2732AFI is specified for an extended temperature range.
