| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,932 pcs
|
8932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,895 pcs
|
1895 pcs | On Request | 1 | On Request | On Request | 1748+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |
The Micron Technology M25P32-VME6G is a 32Mb NOR Serial Flash memory device featuring an SPI bus-compatible serial interface. It supports a maximum clock frequency of 75 MHz and operates from a single supply voltage of 2.7V to 3.6V.
This flash memory offers a capacity of 32Mbit, organized as 4M x 8. Key features include fast page programming up to 256 bytes in 0.64ms (TYP), sector erase capability, and hardware write protection. It also provides a deep power-down mode with a typical current consumption of 1µA.

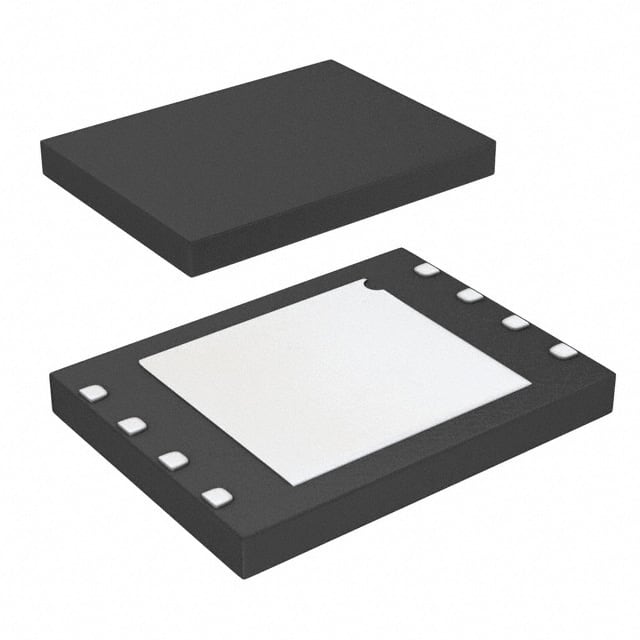

The M25P32-VME6G is supplied in an 8-VDFN Exposed Pad package, specifically an 8-VDFPN (MLP8) measuring 8mm x 6mm, suitable for surface mounting. The operating temperature range is -40°C to 85°C (TA).
With over 100,000 write cycles per sector and more than 20 years of data retention, this component is designed for reliable, long-term data storage applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M25P32-VME6G has a memory size of 32Mbit.
The M25P32-VME6G is a Non-Volatile FLASH - NOR memory.
The M25P32-VME6G uses an SPI memory interface.
The M25P32-VME6G operates within a voltage range of 2.7V to 3.6V.
The M25P32-VME6G supports a maximum clock frequency of 75 MHz.
The operating temperature range for the M25P32-VME6G is -40°C to 85°C (TA).
The M25P32-VME6G is supplied in an 8-VDFPN (MLP8) 8x6mm package.
