| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

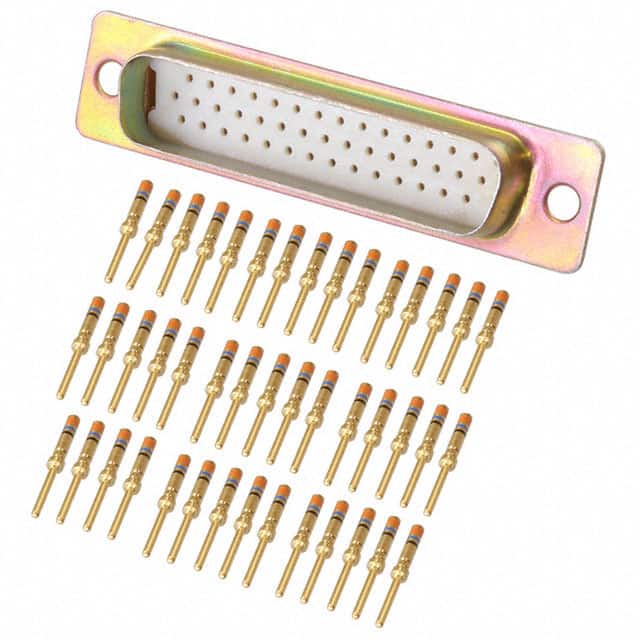

This ITT Cannon M24308/4-13F is a high-density D-Sub connector assembly with 44 male pins, suitable for signal applications. It is designed for panel mounting and features a shielded steel shell with a cadmium-plated finish. The contacts are finished with gold plating to a thickness of 50.0µin (1.27µm) for reliable connectivity.
The connector operates at a current rating of 7.5A and has three rows, with a shell size and layout designated as 3 (DB, B) High Density. Termination is achieved via a crimp method. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This D-Sub connector assembly is ideal for applications requiring robust and reliable connections in a high-density configuration. Its panel mount design facilitates easy integration into equipment and enclosures.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 44 positions.
The current rating is 7.5A.
It supports panel mounting.
The contact finish is gold.
The termination style is crimp.
