| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination |

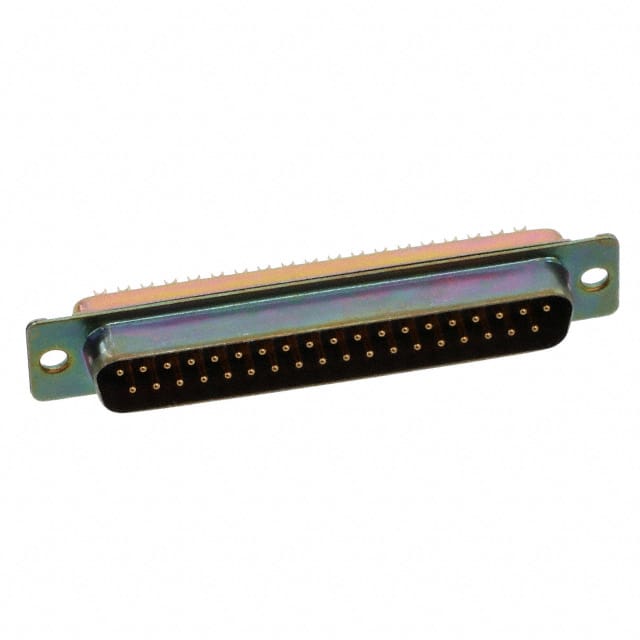

This D-Sub connector assembly from ITT Cannon, part number M24308/3-4Z, is designed for signal applications. It features 37 male pin positions arranged in 2 rows, with a panel mount configuration. The connector style is D-Sub, with a shell size of 4 (DC, C).
The contacts are finished in gold with a thickness of 50.0µin (1.27µm), and the termination style is solder cup. The shell material is steel with a yellow chromate plated zinc finish. This assembly has a current rating of 7.5A.
It is suitable for applications requiring reliable signal connections. The unthreaded housing/shell flange feature aids in secure mounting. The connector is compliant with RoHS3 standards and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M24308/3-4Z connector has 37 positions.
The mounting type for the M24308/3-4Z is Panel Mount.
The current rating of the M24308/3-4Z is 7.5A.
The M24308/3-4Z uses Signal contact type with Gold finish.
The termination style for the M24308/3-4Z is Solder Cup.
The M24308/3-4Z is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the M24308/3-4Z is 1 Unlimited.
