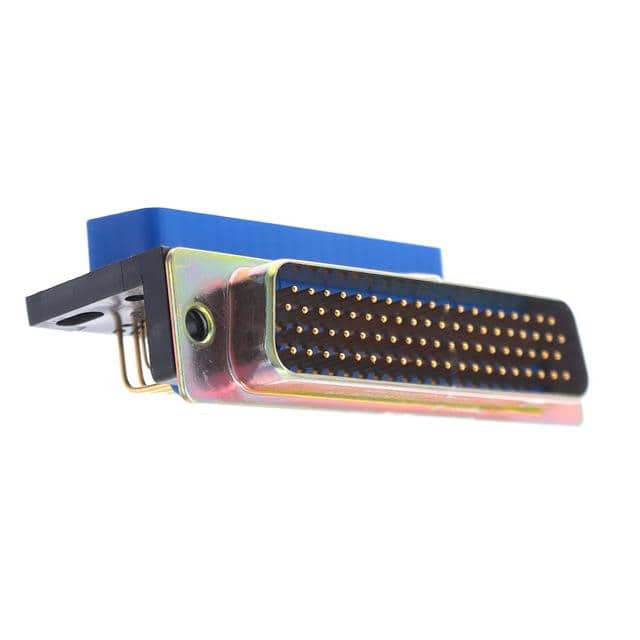

The M24308/24-77F from Positronic is a high density D-Sub plug connector featuring 78 positions arranged in 4 rows. Designed for signal applications, it supports a maximum current rating of 7.5A per contact. The contacts are gold plated with a thickness of 1.27µm (50µin), ensuring reliable low-resistance connections. The connector is configured as a plug with male pins and includes mounting brackets for secure panel attachment.
This connector is designed to meet MIL-DTL-24308 requirements, making it suitable for demanding environments. The shell is constructed from steel with yellow chromate plated cadmium finish, providing durability and corrosion resistance. The connector layout corresponds to shell size 5 (DD, D) high density. It offers a backset spacing of 11.68mm (0.460").
For installation, the M24308/24-77F supports panel mount, through hole, and right angle mounting with solder termination. The flange feature is housing/shell (unthreaded). The insulating material has a UL94 V-0 flammability rating, enhancing safety. The connector is RoHS3 compliant (unverified) and has a MSL level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $369.06 | $369.06 |
| 25+ | $369.05 | $369.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 78 positions.
The maximum current rating is 7.5A per contact.
Panel mount, through hole, and right angle mounting with solder termination.
Gold with a thickness of 1.27µm (50µin).
Yes, it is designed to meet MIL-DTL-24308 requirements.
UL94 V-0.
