| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

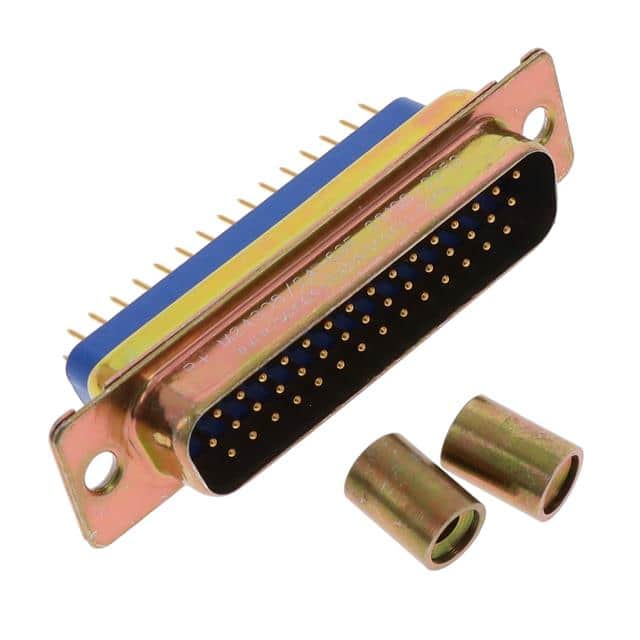

The M24308/24-63F is a high density D-Sub plug connector from Positronic, designed for use in applications requiring compact, reliable signal interconnections. It features 44 positions arranged in 3 rows, with male pin contacts. The contacts are gold-plated with a thickness of 50 microinches (1.27µm), ensuring low contact resistance and corrosion resistance. Termination is through hole solder, and the connector is mounted via through hole to the PCB. The shell is made of steel with cadmium plating, providing durability and EMI shielding. The connector layout is shell size 3 (DB, B) high density, with an unthreaded housing/shell flange feature. It is rated for a current of 7.5A per contact. The insulator material has a flammability rating of UL94 V-0. The part meets the MIL-DTL-24308/24H specification as indicated in the datasheet extract. Compliance data (RoHS, REACH, MSL) is unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $168.19 | $168.19 |
| 10+ | $142.98 | $142.98 |
| 27+ | $135.65 | $135.65 |
| 54+ | $127.65 | $127.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions.
7.5A.
Through hole.
Gold with 50µin thickness.
Steel with cadmium plating.
3 rows.
Solder.
