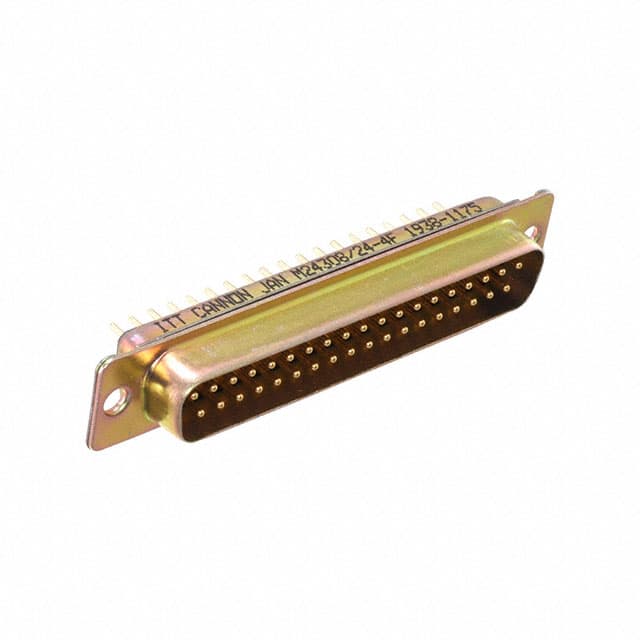

M24308/24-4F The ITT Cannon M24308/24-4F is a 37-position D-Sub connector assembly designed for panel mounting with solder termination. It features a steel shell and gold-plated contacts.
Mfr Part #:

M24308/24-4F

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
The ITT Cannon M24308/24-4F is a 37-position D-Sub connector assembly designed for panel mounting with solder termination. It features a steel shell and gold-plated contacts.
✓ Total Stock: 14 pcs
$ Price Range: $1.00

M24308/24-4F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 05+12 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M24308/24-4F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Features
Flange Feature
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
View Similar Products (0)

M24308/24-4F Description

Short technical summary and product information.

This D-Sub connector assembly from ITT Cannon, part number M24308/24-4F, offers 37 positions across two rows. It is designed for panel mounting and features through-hole termination with solder contacts.



The connector has a steel shell with a yellow chromate plated cadmium finish and features gold-plated contacts with a thickness of 50.0µin (1.27µm). It has a current rating of 7.5A and includes mounting brackets for secure installation. The shell size and connector layout are designated as 4 (DC, C).



This component is suitable for signal applications and is specified with a Moisture Sensitivity Level (MSL) of 1. The RoHS status is compliant, and REACH status is unaffected.

M24308/24-4F Quick Information

Product Type: D-Sub Connector Assembly
Canonical Name: ITT Cannon M24308/24-4F D-Sub Connector Assembly
Subcategory: Connector Assembly

M24308/24-4F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M24308/24-4F Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

M24308/24-4F Features

  • 37 positions in two rows.
  • Panel mount, through hole solder termination.
  • Steel shell with yellow chromate cadmium.
  • Gold plated contacts, 50.0µin thickness.
  • 7.5A current rating.

M24308/24-4F Applications

  • Suitable for signal connections.
  • Panel mount installations.
  • Industrial equipment applications.
  • Test and measurement devices.

M24308/24-4F FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the ITT Cannon M24308/24-4F connector have?

The connector has 37 positions.

What type of mounting is supported?

It supports panel mount and through hole mounting.

What is the termination style for this connector?

The termination style is solder.

What is the contact finish and thickness?

The contact finish is gold with a thickness of 50.0µin (1.27µm).

What is the current rating for this D-Sub connector?

The current rating is 7.5A.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1.
