| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

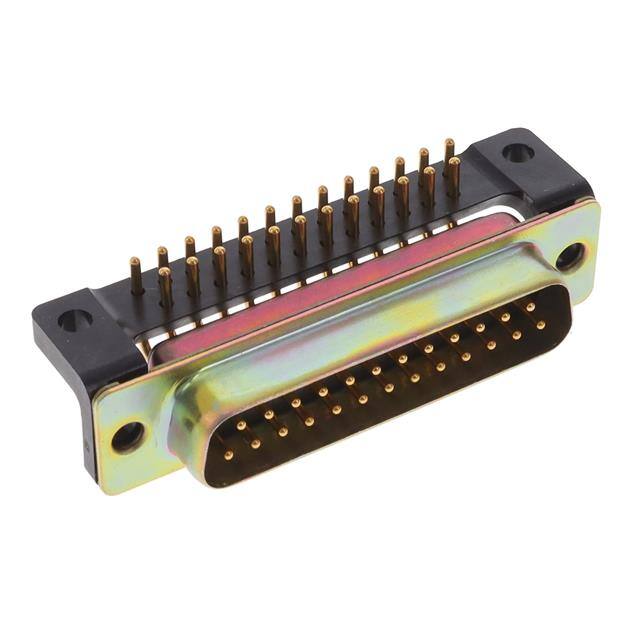

The M24308/24-39F is a D-Sub connector assembly produced by ITT Cannon. It provides 25 signal contacts arranged in two rows, with a shell size of 3 (DB, B). The connector features a housing and shell material of steel with yellow chromate plating, ensuring durability and corrosion resistance. It is designed for panel mounting with through-hole and right-angle solder termination, suitable for various electronic and industrial applications.
This connector includes mounting brackets for secure installation and features a gold contact finish with a thickness of 1.27 micrometers, ensuring good electrical conductivity and corrosion resistance. The connector style is D-Sub with a housing/shell unthreaded flange, and it uses male pins as the connector type. It is compliant with RoHS standards, although this status is unverified, and has a moisture sensitivity level of 1, indicating it can be used in environments with minimal moisture exposure.
The product is part of the D-Sub connector family, designed for reliable signal transmission in electronic systems requiring multiple contacts. Its mechanical and electrical features make it suitable for use in communication, instrumentation, and control systems where secure and durable connections are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 25 positions.
The contact finish is gold with a thickness of 1.27 micrometers.
It supports panel mount, through hole, and right angle mounting.
The shell material is steel with yellow chromate plating.
