| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 05+31 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

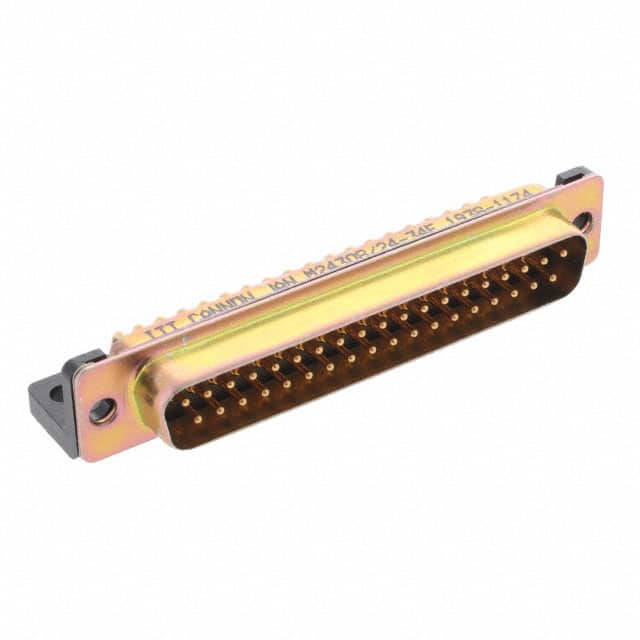

This D-Sub connector assembly from ITT Cannon, part number M24308-24-34F, is designed for robust signal connections. It features 37 positions arranged in 2 rows, with a plug configuration for male pins. The termination style is solder, and the contact finish is gold with a thickness of 50.0µin (1.27µm).
The connector is designed for panel mounting with a through-hole, right-angle orientation. The shell is constructed from steel with a yellow chromate plated cadmium finish, and includes a housing/shell flange feature. It has a current rating of 7.5A and is classified under the D-Sub connector style.
This component is RoHS3 compliant and has an MSL rating of 1. Its shell size and connector layout are designated as 4 (DC, C). Additional features include mounting brackets for secure installation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 37 positions.
The current rating is 7.5A.
It uses solder termination.
The mounting type is Panel Mount, Through Hole, Right Angle.
The contact finish is Gold.
Yes, it is RoHS3 compliant.
The MSL is 1 Unlimited.
