| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

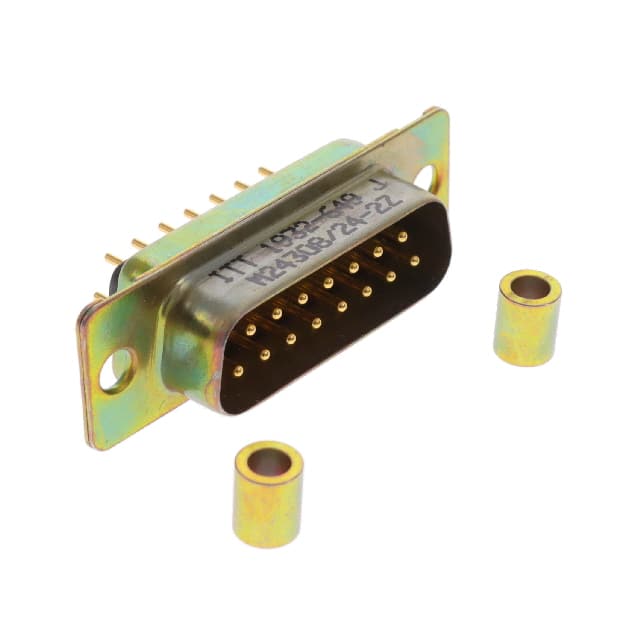

This ITT Cannon M24308/24-2Z is a D-Sub connector assembly featuring 15 positions arranged in 2 rows. It is designed for panel mounting and utilizes a solder termination style. The connector has male pins and a signal contact type.
The shell is constructed from steel with a yellow chromate plated zinc finish, while the contacts are finished with gold plating to a thickness of 50.0µin (1.27µm). The connector style is D-Sub, with a shell size of 2 (DA, A).
This component has a current rating of 7.5A and includes a housing/shell flange feature. It is suitable for applications requiring reliable signal connections in a D-Sub form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M24308/24-2Z connector has 15 positions.
The mounting type is Panel Mount, Through Hole.
The current rating is 7.5A.
This connector uses Signal contact type.
The termination style is Solder.
