| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Method | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

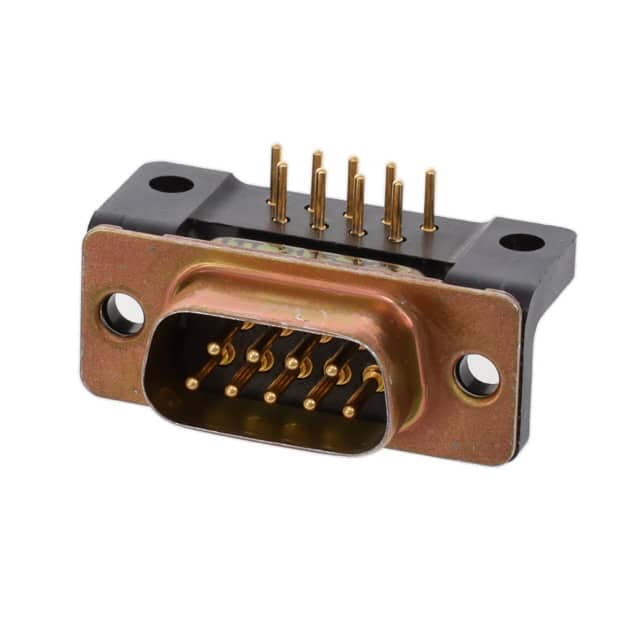

This ITT Cannon M24308/24-25F is a D-Sub connector plug designed for signal applications. It features 9 positions arranged in 2 rows, with a right-angle mounting type suitable for panel mount and through-hole termination. The connector utilizes solder termination and has signal contacts plated with gold to a thickness of 50.0µin (1.27µm) for reliable performance.
The shell is constructed from steel with a yellow chromate plated cadmium finish, and includes unthreaded housing/shell flange features. This D-Sub connector assembly is part of the 24308-Style, D*MM series and is rated for a current of 7.5A. It is suitable for various electronic applications requiring robust and reliable interconnects.
The connector is specified with a shell size layout of 1 (DE, E). It is supplied in bulk packaging. The product status is active, indicating it is a current offering from the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M24308/24-25F is a D-Sub connector plug with male pins.
This connector has 9 positions.
The mounting type is Panel Mount, Through Hole, Right Angle.
It features Signal contacts with a Gold finish.
The termination method is Solder.
The current rating is 7.5A.
