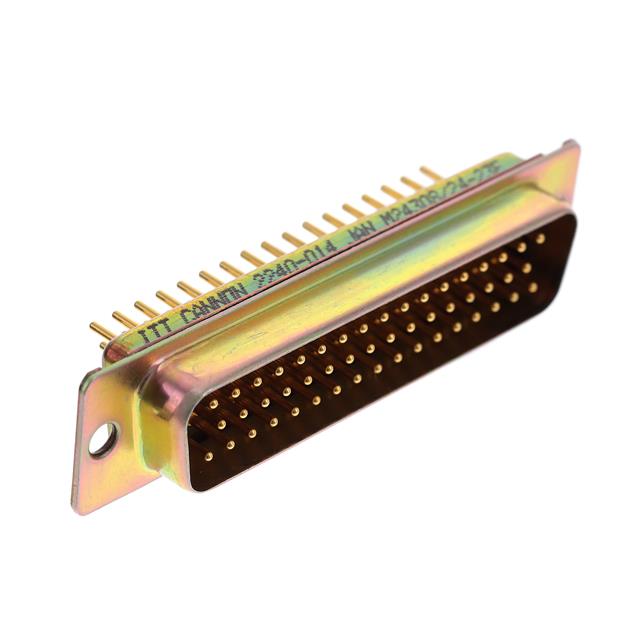

M24308/24-23F The M24308/24-23F from Positronic is a D-Sub connector plug with 50 positions, panel mount, and solder termination. It features gold-plated contacts and a steel shell with yellow chromate finish.
Mfr Part #:

M24308/24-23F

Available from 1 distributors
Mfr Name: Positronic
Positronic
The M24308/24-23F from Positronic is a D-Sub connector plug with 50 positions, panel mount, and solder termination. It features gold-plated contacts and a steel shell with yellow chromate finish.
✓ Total Stock: 7 pcs
$ Price Range: $138.98 - $152.41

M24308/24-23F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2102/1317 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M24308/24-23F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Flange Feature
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Tape & Reel
Termination
Termination Style
View Similar Products (0)

M24308/24-23F Description

Short technical summary and product information.

The M24308/24-23F is a MIL-DTL-24308/24H compliant D-Sub connector plug manufactured by Positronic. It features 50 positions arranged in 3 rows and is designed for panel mount with through-hole solder termination.



The connector has gold-plated signal contacts with 50µin thickness, rated for 7.5A. The shell is steel with yellow chromate plated cadmium and an unthreaded housing/shell flange feature. The insulator material has a UL94 V-0 flammability rating.



This component is suitable for rack and panel applications requiring reliable signal connections. The panel mount with solder termination ensures secure attachment in industrial, military, and data communication equipment.

M24308/24-23F Quick Information

Product Type: D-Sub Connector Assembly
Series: M24308
Canonical Name: D-Sub Connector, Plug, 50 Positions, Panel Mount, Solder Termination
Subcategory: Plug

M24308/24-23F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M24308/24-23F Estimated Pricing

Qty Low High
1+ $152.41 $152.41
10+ $146.00 $146.00
25+ $142.21 $142.21
50+ $138.98 $138.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

M24308/24-23F Features

  • 50-position D-Sub plug with three rows.
  • Panel mount with solder termination.
  • Gold-plated contacts rated at 7.5A.
  • Steel shell with yellow chromate finish.
  • UL94 V-0 rated insulator material.

M24308/24-23F Applications

  • Ideal for rack and panel connections.
  • Suitable for military/aerospace signal wiring.
  • Used in industrial control interfaces.
  • Works in data communication equipment.

M24308/24-23F FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M24308/24-23F have?

50 positions.

What is the current rating of this connector?

7.5A.

What mounting type does this connector support?

Panel Mount, Through Hole.

What contact finish is used?

Gold with 50µin thickness.

How many rows of contacts?

3 rows.

What is the shell material and finish?

Steel, Yellow Chromate Plated Cadmium.

Is this connector RoHS compliant?

RoHS3 Compliant (unverified low confidence).
