| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

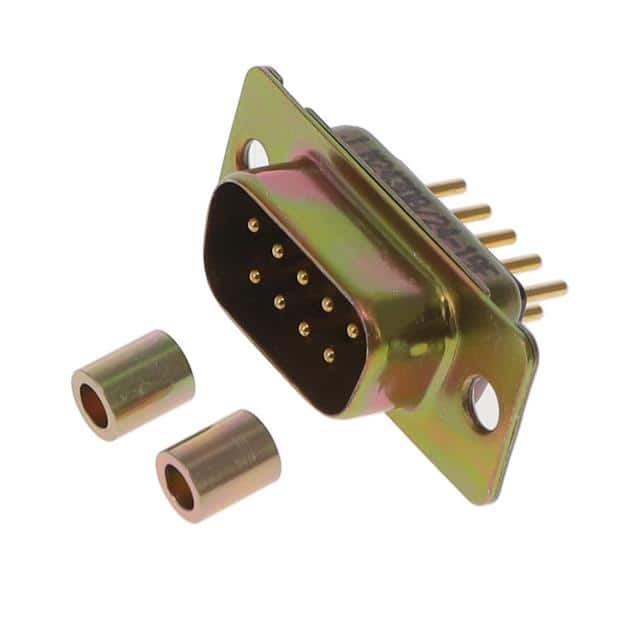

The ITT Cannon M24308/24-19F is a D-Sub connector assembly featuring a plug configuration with male pins. It offers 9 positions arranged in 2 rows, suitable for signal applications.
This connector is designed for panel mounting and utilizes a through-hole termination style with solder connections. The shell is constructed from steel with a yellow chromate plated cadmium finish, and the contacts are gold-plated to a thickness of 50.0µin (1.27µm). The connector has a current rating of 7.5A and a shell size designation of 1 (DE, E).
Key mechanical features include a housing/shell flange with an unthreaded design. The connector is specified as RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. The REACH status is marked as unaffected.
This component is suitable for applications requiring reliable signal connections in a D-Sub form factor, with a focus on secure panel mounting and durable construction.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 9 positions.
The current rating is 7.5A.
It supports panel mounting.
The termination style is solder.
The contact finish is gold.
The Moisture Sensitivity Level is 1.
