| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
91 pcs
|
91 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

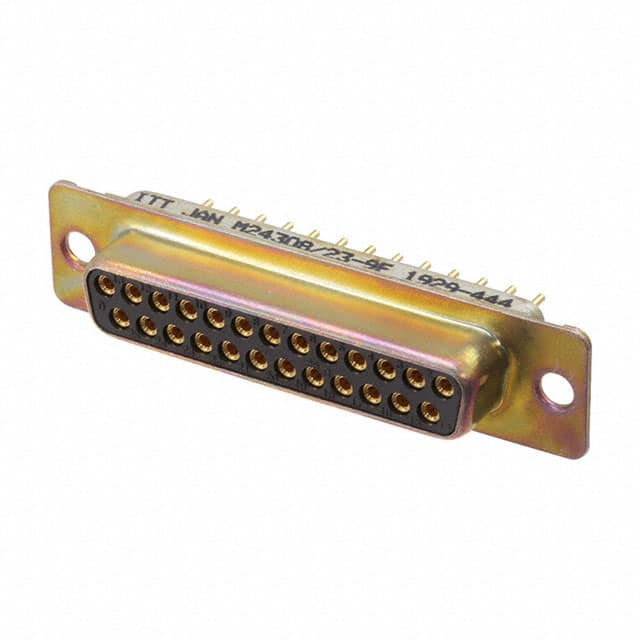

This ITT Cannon M24308/23-9F is a D-Sub connector assembly designed for panel mounting with through-hole termination. It offers 25 positions across 2 rows, providing signal connectivity.
The connector features gold-plated contacts with a thickness of 50.0µin (1.27µm) for reliable performance. The shell is constructed from steel with a yellow chromate plated cadmium finish. It has a current rating of 7.5A.
Key mechanical features include a size 3 (DB, B) shell layout and a housing/shell flange feature. The termination method is solder, suitable for various assembly processes.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is suitable for applications requiring robust and reliable D-Sub connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M24308/23-9F connector has 25 positions.
The current rating for this D-Sub connector is 7.5A.
The M24308/23-9F supports panel mount and through hole mounting.
The contact finish on the M24308/23-9F is gold.
The termination style for this connector is solder.
The M24308/23-9F is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) for this part is 1.
