| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
224 pcs
|
224 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

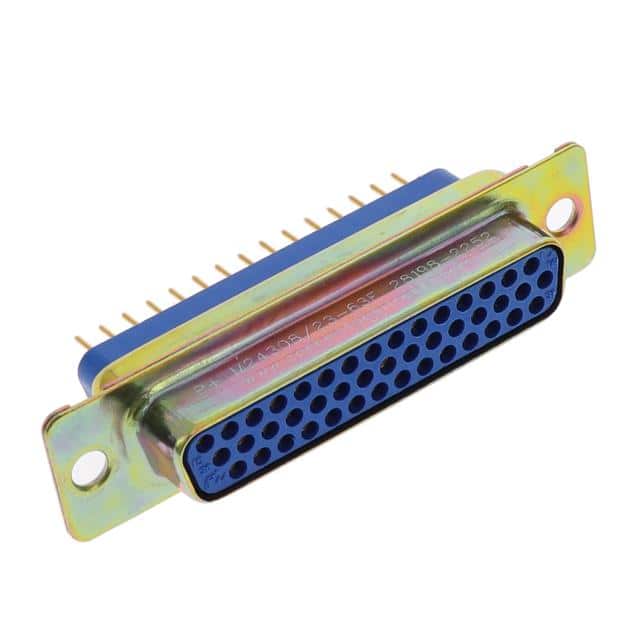

The Positronic M24308/23-63F is a high density D-sub receptacle connector designed for reliable signal connections in harsh environments. It features 44 female socket contacts arranged in 3 rows, with a shell size 3 (DB, B) high density layout. The connector is through hole mounted and terminated via solder connections. Electrical characteristics include a current rating of 5A per contact, with gold plated contacts providing excellent conductivity and corrosion resistance. The contact finish thickness is 50.0µin (1.27µm). The metal shell is made of steel with cadmium plating, offering durability and shielding. Flange features include housing/shell (4-40) for secure mating. For environmental protection, the connector is rated IP65/IP67 for dust tightness, water resistance, and waterproofing. The material flammability rating is UL94 V-0. This connector is suitable for industrial, military, and aerospace applications requiring robust connectivity.
| Qty | Low | High |
|---|---|---|
| 25+ | $223.97 | $223.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions.
5A per contact.
Through hole.
Gold plating with 50.0µin (1.27µm) thickness.
IP65/IP67 - dust tight, water resistant, waterproof.
D-Sub, High Density.
UL94 V-0.
