| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

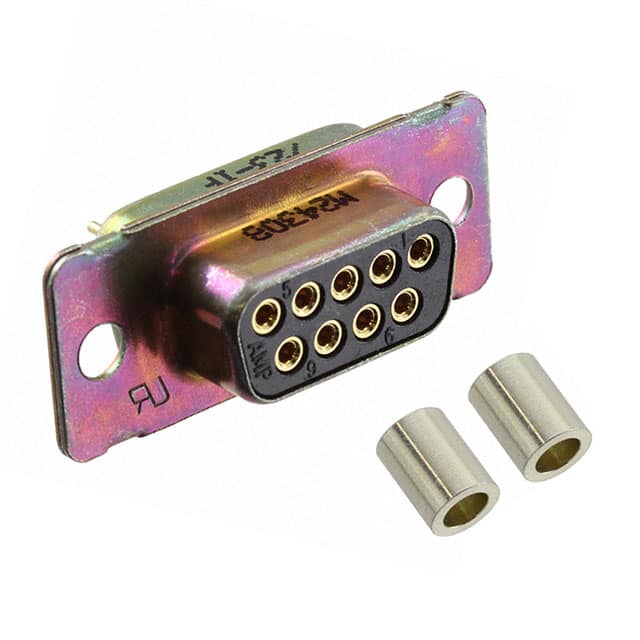

The M24308/23-1F is a D-Sub receptacle connector from TE Connectivity, designed for reliable signal connections in a compact DE-9 shell size. It has 9 positions arranged in 2 rows, with female socket contacts that accept male D-Sub pins.
The connector uses through hole mounting for secure attachment to a printed circuit board, with solder termination for permanent connections. The contacts are gold-plated with a thickness of 10.0 microinches (0.25 micrometers), providing corrosion resistance and reliable electrical performance over repeated mating cycles.
The shell is made of steel with a cadmium plating, offering durability and shielding. The flange feature is housing/shell unthreaded, suitable for applications where the connector is secured by the mating connector's hardware. The current rating is 5 amps per contact, suitable for signal-level applications.
It is a D-Sub receptacle with female sockets.
It has 9 positions arranged in 2 rows.
It is a through hole mount connector with solder termination.
The current rating is 5 amps per contact.
The contacts have a gold finish with a thickness of 10.0 microinches (0.25 micrometers).
The shell is made of steel with a cadmium plating.
The shell size is 1 (DE, E), which corresponds to a DE-9 shell.
