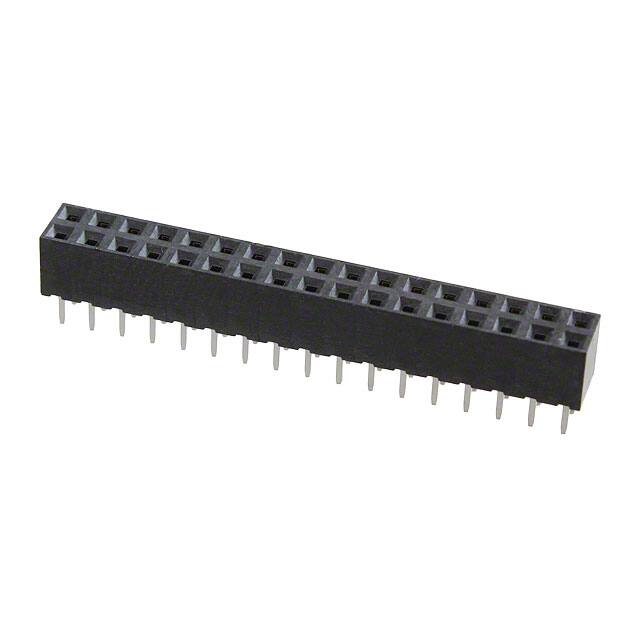

The Harwin M22-7141742 is a 34 position female receptacle connector from the M22 series. It features a double row configuration with 2.00mm pitch, making it suitable for compact board to board or cable connections. The connector has a through hole mounting style with solder termination, providing reliable mechanical attachment.
Electrical ratings include a current rating of 2A per contact and a voltage rating of 500VAC. The insulation resistance is 1000 MΩ minimum, and the dielectric withstanding voltage is 500V AC/DC for 1 minute. The operating temperature range is -40°C to 105°C.
The contact area is finished with gold for reliable mating, while the termination area is tin finished for solderability. The housing is made of high temperature thermoplastic with UL94 V-0 flammability rating, and the insulator color is black. The connector is packaged in tubes.
Mated stacking heights of 5.8mm, 6.55mm, and 6.8mm are supported. The fastening type is push-pull, and the connector is designed for use in various electronic assemblies requiring a compact, reliable interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.01 | $5.01 |
| 10+ | $4.11 | $4.11 |
| 17+ | $4.10 | $4.10 |
| 102+ | $3.61 | $3.61 |
| 510+ | $3.22 | $3.22 |
| 1,003+ | $3.07 | $3.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.00mm (0.079 inches).
2A.
500VAC.
Through hole.
-40°C to 105°C.
Gold.
