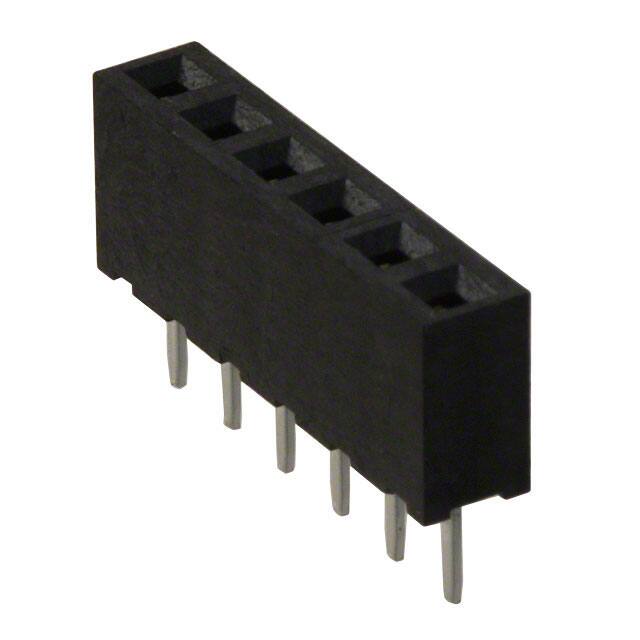

M22-7130642 Connector receptacle, 6 positions, 0.079" (2.00mm) pitch, gold contact, through hole solder. Single row, female socket, rated for 2A and 500V AC/DC.
Mfr Part #:

M22-7130642

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Connector receptacle, 6 positions, 0.079" (2.00mm) pitch, gold contact, through hole solder. Single row, female socket, rated for 2A and 500V AC/DC.
✓ Total Stock: 588 pcs
$ Price Range: $0.74 - $1.34

M22-7130642 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
588 pcs
On Request
588 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M22-7130642 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Insulation Color
Insulation Height
Insulation Resistance
Lead Spacing
Lead Style
Mated Stacking Heights
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Style
Termination
Voltage Rating
View Similar Products (0)

M22-7130642 Description

Short technical summary and product information.

The M22-7130642 is a 6-position single row female receptacle from Harwin's M22 series, designed for 2.00mm pitch interconnections. It features a through hole solder termination with gold contact finish and tin termination. The connector is rated for 2A current per contact and 500V AC/DC voltage, with a maximum contact resistance of 20mΩ and minimum insulation resistance of 1000MΩ. The operating temperature range is -40°C to +105°C, and the housing material is UL94 V-0 rated thermoplastic. The receptacle has a push-pull fastening type and is suitable for board-to-board or cable applications. Packaging is in tubes.

M22-7130642 Quick Information

Product Type: Receptacle Connector
Series: M22
Canonical Name: Harwin M22 Series 6 Position Single Row Female Receptacle, 2.00mm Pitch, Through Hole, Solder, Gold Contact/Tin Termination
Subcategory: Female Sockets

M22-7130642 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M22-7130642 Estimated Pricing

Qty Low High
1+ $1.34 $1.34
10+ $1.23 $1.23
25+ $0.97 $0.97
98+ $0.93 $0.93
294+ $0.89 $0.89
588+ $0.86 $0.86
1,078+ $0.81 $0.81
5,096+ $0.74 $0.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

M22-7130642 Features

  • 6 position single row female receptacle.
  • 2.00mm (0.079") pitch spacing.
  • Through hole solder termination.
  • Gold contact with tin termination.
  • Rated for 2A current and 500V.

M22-7130642 Applications

  • Board-to-board interconnections in compact designs.
  • Cable-to-board connections with push-pull fastening.
  • Used in industrial and consumer electronics.

M22-7130642 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M22-7130642 have?

The connector has 6 positions, all loaded.

What is the pitch of this connector?

The pitch is 2.00mm (0.079").

What is the current rating?

The maximum current rating per contact is 2A.

What is the voltage rating?

The voltage rating is 500V AC/DC.

What is the mounting type?

The connector is through hole mounted with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to +105°C.

What is the contact finish?

The contact finish is gold on the contact area and tin on the termination.
