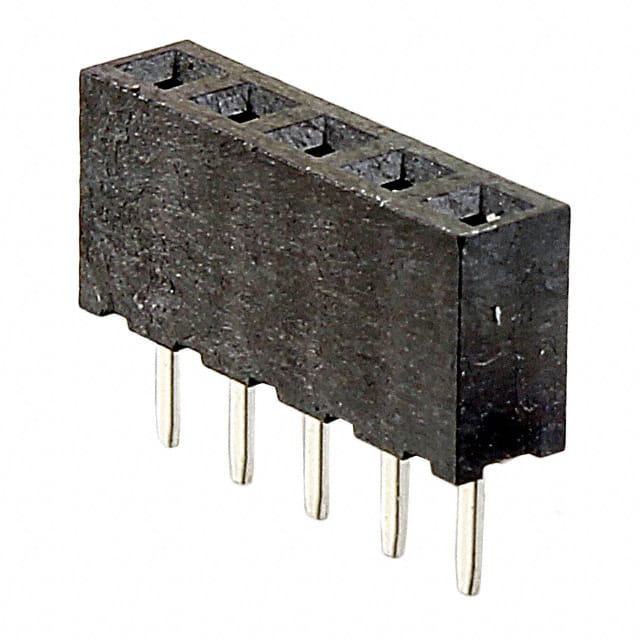

The Harwin M22-7130542 is a 5 position single row receptacle from the M22 series of 2.00mm pitch square pin connectors. It features female socket contacts made of copper alloy with tin plating and a high temperature thermoplastic housing rated UL94 V-0. The connector uses push-pull fastening and supports board to board or cable styles with a mated stacking height of 5.9mm.
Electrical ratings include a maximum current of 2A per contact and a voltage rating of 500VAC. Contact resistance is 20mΩ maximum, insulation resistance is 1,000MΩ minimum, and the dielectric withstanding voltage is 500V AC/DC for 1 minute. The operating temperature range is -40°C to 105°C.
The connector is through hole mounted with solder termination, making it suitable for vertical PCB mounting. The black insulation height is 4.40mm and contact length is 2.40mm. All 5 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
| 10+ | $1.15 | $1.15 |
| 116+ | $0.96 | $0.96 |
| 232+ | $0.96 | $0.96 |
| 580+ | $0.86 | $0.86 |
| 1,044+ | $0.84 | $0.84 |
| 2,552+ | $0.82 | $0.82 |
| 5,104+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 5 positions in a single row.
The pitch is 2.00mm (0.079").
The maximum current rating is 2A per contact.
The voltage rating is 500VAC.
It is through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin.
