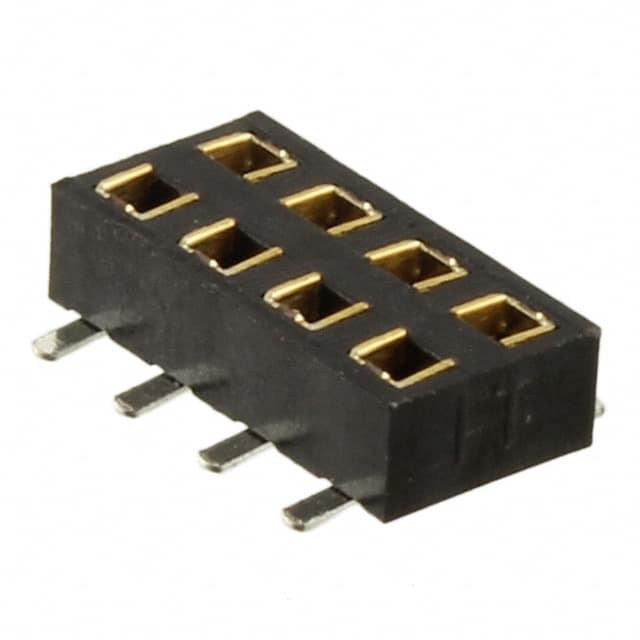

The Harwin M22-6360442 is a 2.00mm pitch female receptacle connector from the M22 series. It features 8 contacts arranged in a 4+4 double row configuration, with a straight surface mount termination. The connector is designed for board-to-board or cable applications and accepts both top and bottom entry mating.
Rated at 2A per contact, it operates over -40°C to 105°C. The housing is made of high temperature thermoplastic with UL94 V-0 flammability rating, and the contacts are copper alloy with Gold+Tin finish. The insulation height is 2.00mm, and mated stacking heights of 3.6mm, 4.35mm, and 4.6mm are supported.
The connector includes a push-pull fastening mechanism and board guide features for alignment. It is suitable for use in diverse applications requiring a compact, reliable interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 10+ | $2.37 | $2.37 |
| 25+ | $1.80 | $1.80 |
| 72+ | $1.71 | $1.71 |
| 504+ | $1.56 | $1.56 |
| 1,008+ | $1.49 | $1.49 |
| 5,040+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions (4+4) in a double row configuration.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A per contact.
The connector is surface mount (SMT).
The operating temperature range is -40°C to 105°C.
The contact finish is Gold+Tin per the manufacturer page.
The insulation resistance is 1,000MΩ minimum.
