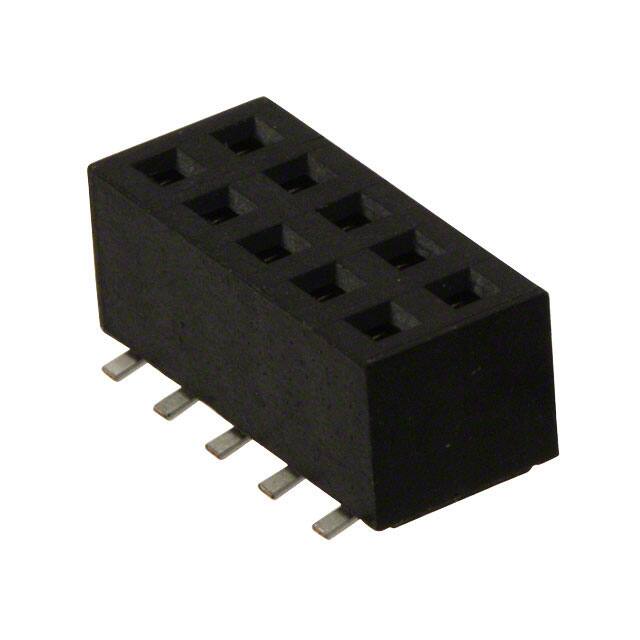

The Harwin M22-6340542 is a 10 position female socket receptacle from the M22 series of 2.00mm pitch board-to-board connectors. It features a double row configuration with all positions loaded, and a push-pull fastening type. The connector is designed for surface mount termination with solder contacts, and supports both bottom or top entry mating. The housing is made of high temperature thermoplastic with a UL94 V-0 flammability rating and is colored black. The contact area is finished with gold, while the termination area is finished with tin. The connector has an insulation height of 4.30mm and a row spacing of 2.00mm. It is rated for a current of 2A per contact maximum and a voltage of 500VAC. The operating temperature range is -40°C to 105°C. The dielectric withstanding voltage is 500V AC/DC for 1 minute, and the minimum insulation resistance is 1,000MΩ. The connector is packaged in tubes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.53 | $1.53 |
| 10+ | $1.48 | $1.48 |
| 25+ | $1.16 | $1.16 |
| 110+ | $1.09 | $1.09 |
| 550+ | $0.98 | $0.98 |
| 1,045+ | $0.94 | $0.94 |
| 2,530+ | $0.91 | $0.91 |
| 5,005+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M22-6340542 has 10 positions arranged in 2 rows (5+5).
The pitch is 2.00mm (0.079 inches).
The current rating is 2A per contact maximum.
The voltage rating is 500VAC.
The mounting type is surface mount (SMT).
The operating temperature range is -40°C to 105°C.
The contact area has a gold finish, and the termination area has a tin finish.
