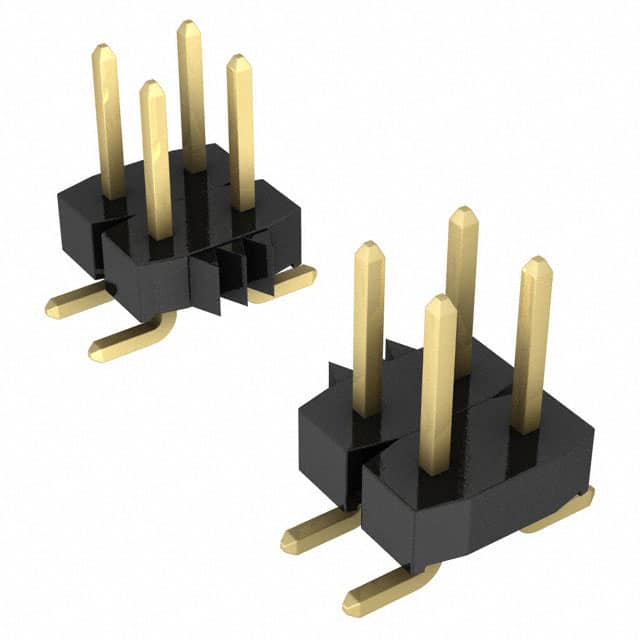

The Harwin M22-5322205 is a 44-position (22+22) dual row, 2.00mm pitch male pin header designed for surface mount soldering. It features an unshrouded, push-pull fastening style and is intended for board-to-board interconnections.
Key specifications include a 2.00mm pitch and row spacing, 3.5mm mating pin height, and gold plating on both the contact area and termination. The insulator is black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating. The contacts are made of phosphor bronze.
Electrically, the connector is rated for 2A per contact (max), with a contact resistance of 20mΩ max, dielectric withstanding voltage of 500V AC/DC for 1 minute, and insulation resistance of 1,000MΩ min. It operates over a temperature range of -40°C to 105°C and has passed vibration and shock testing.
The connector is packaged loose in bags. It is RoHS3 compliant and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1,050+ | $1.99 | $1.99 |
| 2,550+ | $1.96 | $1.96 |
| 5,100+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions (22+22) in a dual row configuration.
2.00mm (0.079") pitch with 2.00mm row spacing.
2A per contact maximum.
Surface mount (SMT) with solder termination.
-40°C to 105°C.
RoHS3 Compliant (unverified).
