| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,700 pcs
|
11700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Insulation Resistance | |
| Operating Temperature | |
| Pin or Socket | |
| Tape & Reel | |
| Wire Gauge |

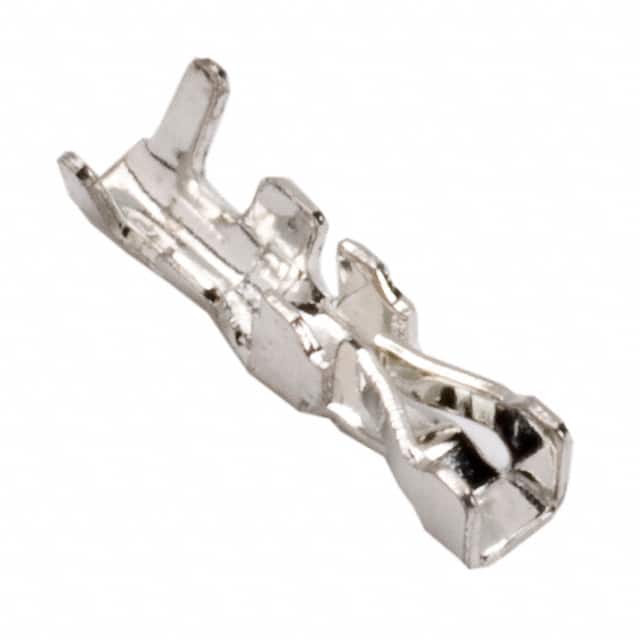

The M22-3050046 is a crimp socket contact from Harwin's M22 series of 2mm pitch rectangular connector contacts. It is designed for use with 24 to 30 AWG wire and features a copper alloy contact material with a tin finish.\n\nElectrical ratings include a maximum current of 1A per contact, maximum contact resistance of 20 mΩ, dielectric withstanding voltage of 500 V AC/DC for 1 minute, and minimum insulation resistance of 1000 MΩ. The operating temperature range is -25°C to +85°C.\n\nThe socket is a box section design with barbs to locate and hold in an insulated housing. Termination is by crimping, making it suitable for cable connector applications within M22 series housings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.12 | $0.12 |
| 100+ | $0.11 | $0.11 |
| 300+ | $0.10 | $0.10 |
| 1,000+ | $0.10 | $0.10 |
| 2,500+ | $0.09 | $0.09 |
| 10,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24-30 AWG.
1 A maximum per contact.
20 mΩ maximum.
-25°C to +85°C.
Tin.
500 V AC/DC for 1 minute.
Crimp.
