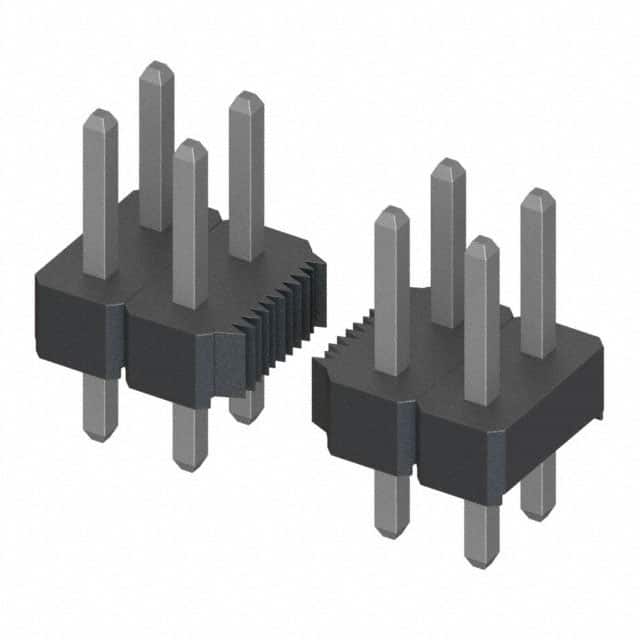

The Harwin M22-2521046 is a 2mm pitch unshrouded male pin header designed for board-to-board interconnections. It has 20 positions arranged in 2 rows with a 2.00mm pitch and 2.00mm row spacing. The through-hole solder termination provides reliable connections in compact electronic assemblies.
This header features tin-plated phosphor bronze contacts with a contact resistance of 20 mΩ maximum and a dielectric withstanding voltage of 500V AC/DC for 1 minute. The insulation resistance is 1,000 MΩ minimum. The polyamide (PA6T/Nylon 6T) housing is rated UL94 V-0 and is black in color. The operating temperature range is -40°C to 105°C.
Key physical dimensions include an insulation height of 1.50mm, an overall contact length of 7.30mm, and a contact length of 3.50mm. The unshrouded design allows the header to be cut to desired length for custom applications. The push-pull fastening type ensures secure mating. This connector is suitable for a wide range of industrial, automotive, and consumer electronics applications requiring reliable board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
| 10+ | $1.08 | $1.08 |
| 25+ | $1.03 | $1.03 |
| 100+ | $1.01 | $1.01 |
| 300+ | $0.88 | $0.88 |
| 600+ | $0.73 | $0.73 |
| 1,200+ | $0.70 | $0.70 |
| 2,700+ | $0.68 | $0.68 |
| 5,100+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.00mm (0.079 inches).
1A per contact (based on existing data; verify with manufacturer for specific variant).
Through hole.
-40°C to 105°C.
Phosphor bronze with tin plating.
UL94 V-0.
