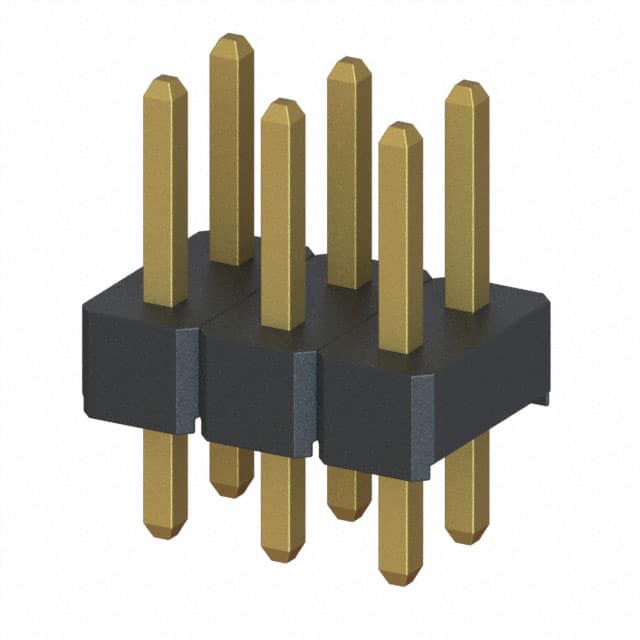

M22-2520305 This is a 6-position (2x3), 2.00mm pitch male pin header from Harwin's M22 series. It features through hole mounting, gold contacts, and is unshrouded for board-to-board applications.
Mfr Part #:

M22-2520305

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
This is a 6-position (2x3), 2.00mm pitch male pin header from Harwin's M22 series. It features through hole mounting, gold contacts, and is unshrouded for board-to-board applications.
✓ Total Stock: 40 pcs
$ Price Range: $0.23 - $0.44

M22-2520305 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M22-2520305 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Post Length
View Similar Products (0)

M22-2520305 Description

Short technical summary and product information.

The Harwin M22-2520305 is a 6-position (2x3) male pin header from the M22 series, designed for board-to-board interconnections. It features a 2.00mm (0.079") pitch and dual row configuration with square pins. The contacts are made of phosphor bronze with gold plating, ensuring low contact resistance of 20mΩ max. The insulation is black polyamide (PA6T, Nylon 6T) with a height of 1.50mm, rated UL94 V-0 for flammability. This unshrouded header uses push-pull fastening and is mounted through hole with solder termination. The mating pin height is 3.50mm, overall contact length is 7.30mm, and termination post length is 2.3mm. Electrical ratings include 2A current per contact (max), dielectric withstanding voltage of 500V AC/DC, and insulation resistance of 1,000MΩ min. Operating temperature range is -40°C to 105°C. The part is packaged loose in bags.

M22-2520305 Quick Information

Product Type: Header, Male Pins
Series: M22
Canonical Name: Harwin M22-2520305 6-Position (2x3) 2.00mm Pitch Male Pin Header, Through Hole, Gold
Subcategory: Unshrouded Male Pin Header

M22-2520305 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M22-2520305 Estimated Pricing

Qty Low High
1+ $0.44 $0.44
10+ $0.38 $0.38
100+ $0.32 $0.32
250+ $0.29 $0.29
1,000+ $0.27 $0.27
3,000+ $0.26 $0.26
5,000+ $0.24 $0.24
10,000+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

M22-2520305 Features

  • 6 positions in a 2x3 dual row configuration.
  • 2.00mm pitch for compact board-to-board connections.
  • Gold plated phosphor bronze contacts ensure low resistance.
  • Unshrouded design with push-pull fastening mechanism.
  • Rated for 2A per contact and 500V dielectric strength.

M22-2520305 Applications

  • Ideal for board-to-board interconnections in compact designs.
  • Suitable for use in industrial control systems.
  • Can be used in communication equipment requiring reliable connections.

M22-2520305 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

6 positions in a 2x3 dual row configuration.

What is the pitch of this connector?

2.00mm (0.079 inches).

What is the current rating per contact?

2A per contact (max).

What is the dielectric withstanding voltage?

500V AC/DC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

What is the flammability rating?

UL94 V-0.
