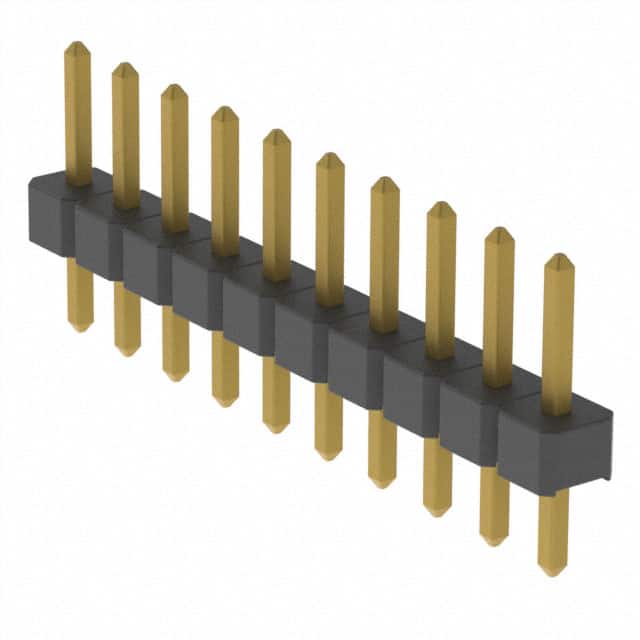

The M22-2511005 is a 10-position, single row, 2.00mm pitch unshrouded pin header from Harwin's M22 series. Designed for board-to-board interconnections, it features a through hole mounting style with solder termination. The contacts are made of phosphor bronze with a gold finish, providing reliable electrical performance. The insulator is black polyamide (PA6T) with a UL94 V-0 flammability rating. This header has a push-pull fastening type and is unshrouded, allowing easy access for mating. Electrical ratings include a current capacity of 1A per contact, a contact resistance of 20mΩ maximum, dielectric withstanding voltage of 500V AC/DC, and insulation resistance of 1000MΩ minimum. Operating temperature range is -40°C to 105°C. The overall contact length is 0.287" (7.30mm) with an insulation height of 1.50mm. This part is suitable for vertical mounting and is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.59 | $0.59 |
| 100+ | $0.50 | $0.50 |
| 250+ | $0.44 | $0.44 |
| 1,000+ | $0.42 | $0.42 |
| 2,500+ | $0.41 | $0.41 |
| 5,000+ | $0.38 | $0.38 |
| 10,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions in a single row.
The pitch is 2.00mm.
It is rated at 1A per contact.
It is a through hole mounting type.
The operating temperature range is -40°C to 105°C.
The contacts have a gold finish.
The insulator is polyamide (PA6T) with a UL94 V-0 flammability rating.
