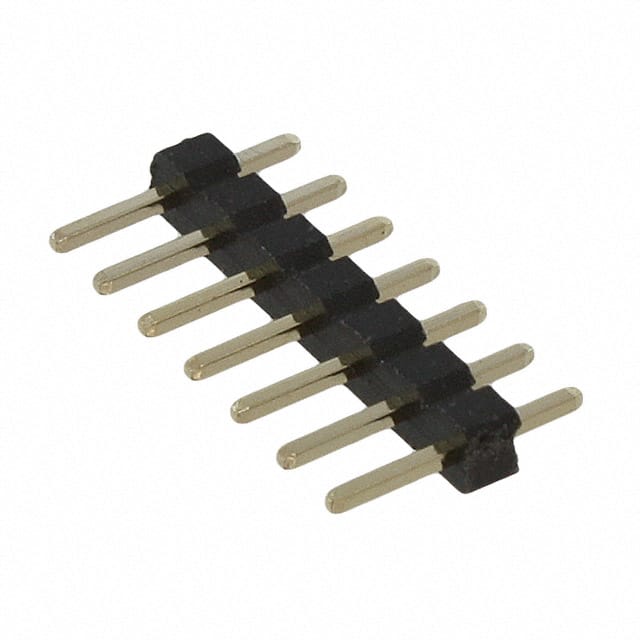

The M22-2510705 from Harwin is a 7-position single row male pin header from the M22 series. This unshrouded header features a 2.00mm pitch and is designed for through hole mounting with solder termination. The contacts are made of phosphor bronze with gold plating, offering reliable conductivity and corrosion resistance.
Electrical ratings include a current rating of 1A per contact, with a contact resistance of 20 mΩ maximum. The dielectric withstanding voltage is 500V AC/DC, and insulation resistance is 1000 MΩ minimum. The operating temperature range spans -40°C to 105°C, suitable for a variety of environments. The insulator is black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating.
This header is packaged loose in bags and is designed for board-to-board applications. The cuttable connector type allows for customization of the number of positions. The 3.50mm contact length and 1.50mm insulation height provide a compact footprint for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.44 | $0.44 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.33 | $0.33 |
| 1,000+ | $0.31 | $0.31 |
| 3,000+ | $0.30 | $0.30 |
| 5,000+ | $0.28 | $0.28 |
| 10,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
2.00mm (0.079 inches).
1A per contact maximum.
500V AC/DC.
Through hole, solder termination.
-40°C to 105°C.
Phosphor bronze with gold plating.
