| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

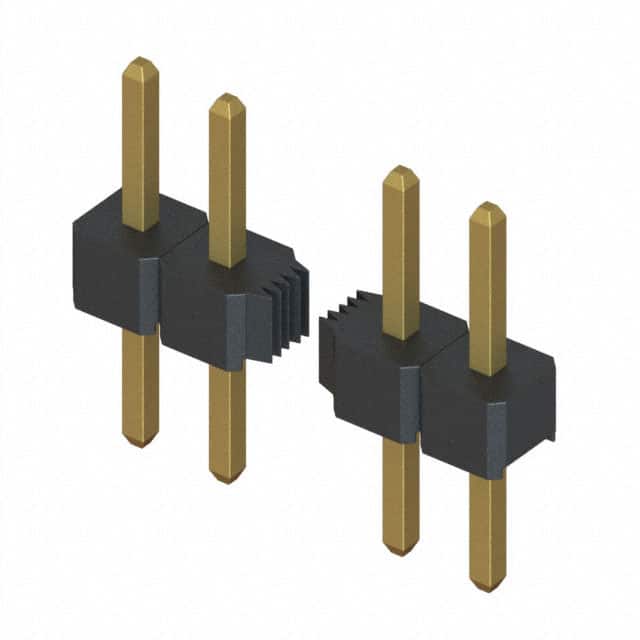

The Harwin M22-2010505 is a 5-position, single row male pin header from the M22 series of 2.00mm pitch connectors. Designed for board-to-board interconnections, this unshrouded header features a through-hole mounting style with solder termination for reliable PCB attachment.
Electrical ratings include a current rating of 1A per contact, dielectric withstanding voltage of 500V AC/DC, contact resistance of 20mΩ max, and insulation resistance of 1000MΩ min. The operating temperature range spans -55°C to 105°C, suitable for a wide range of environments.
Mechanically, the connector uses phosphor bronze contacts with gold plating for corrosion resistance and reliable conductivity. The insulation material is UL94 V-0 rated black Polyamide (PA6T/Nylon 6T). The header is unshrouded with a push-pull latching mechanism and all positions loaded.
Compliance data includes RoHS3, REACH, and MSL Level 1 ratings, though this information is unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.25 | $0.25 |
| 250+ | $0.23 | $0.23 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.21 | $0.21 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions in a single row.
2.00mm (0.079").
1A per contact.
Through hole, solder termination.
500V AC/DC for 1 minute.
-55°C to 105°C.
